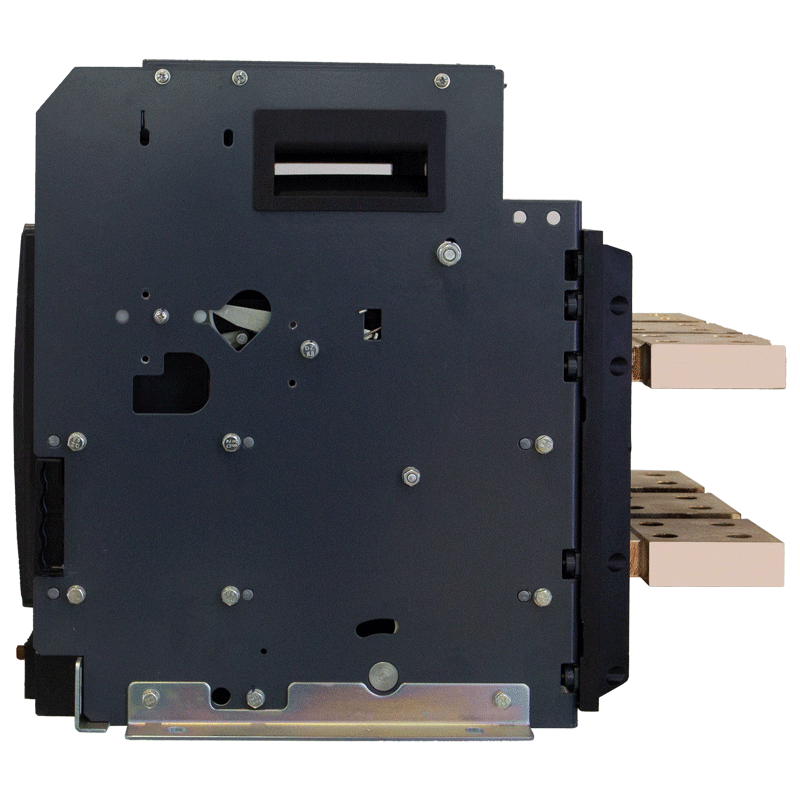

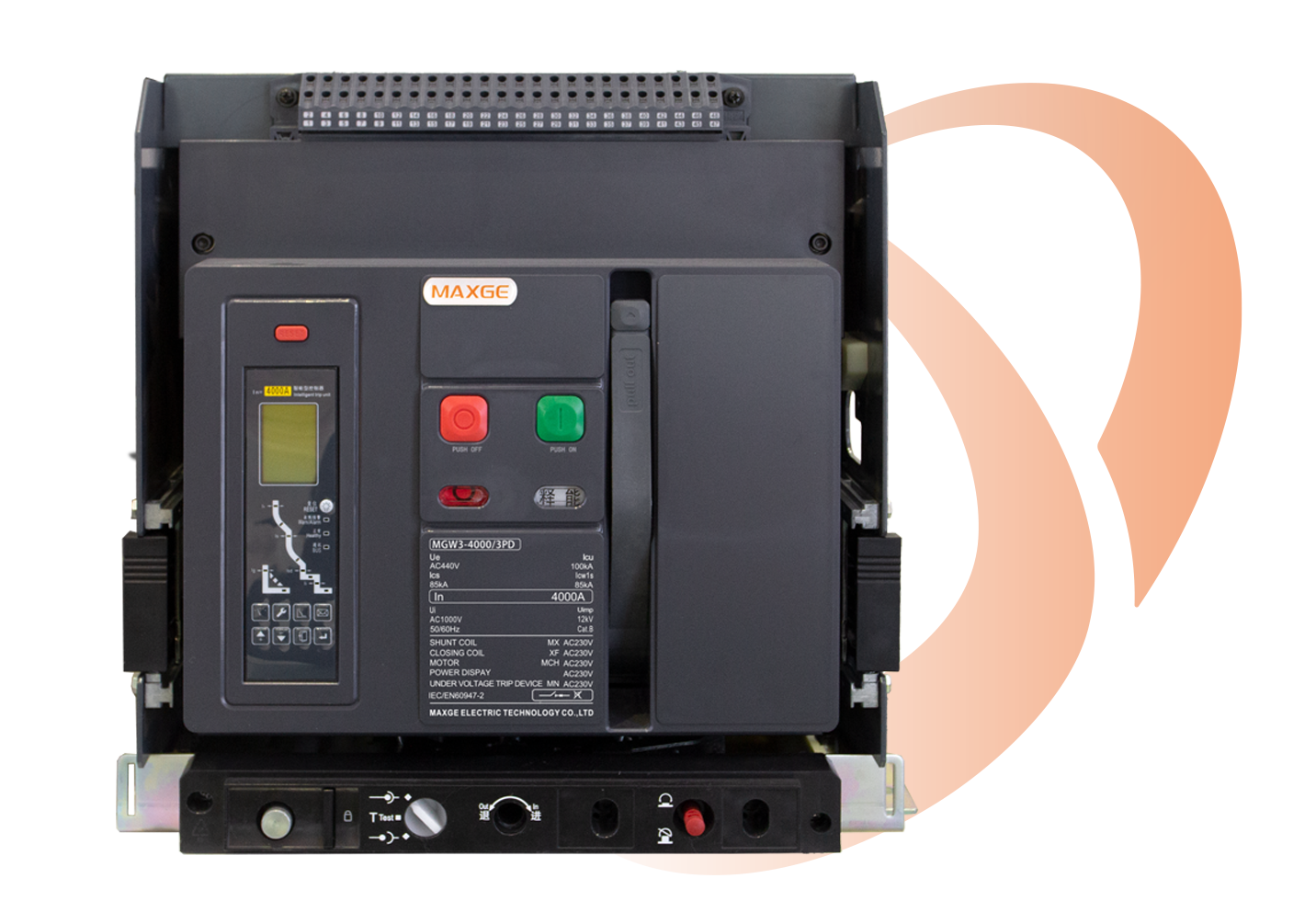

MGW6-4000 Air Circuit Breaker
Brief Specification
Frame Size:4000
Rated current(A) In:2000,2500,2900,3000,3200
Rated operational voltage Ue (V):400-690V
Rated insulation voltage Ui (V):1000
Rated impluse withstand voltage Uimp (kV):12
Rated ultimate short-circuit breaking capacity Icu(kA):100
Rated service short-circuit breaking capacity Ics(kA):85
Rated short-time withstand current Icw(kA-1 s):65/85
Poles:3P/4P
![](https://omo-oss-image.thefastimg.com/portal-saas/new2022071513440042804/cms/image/b512a12e-90d0-4fff-9584-339af1c75137.png)
![](https://omo-oss-image.thefastimg.com/portal-saas/new2022071513440042804/cms/image/77eff943-2992-4d4b-8b15-907c90004c23.jpg)
![](https://omo-oss-image.thefastimg.com/portal-saas/new2022071513440042804/cms/image/ef499fa7-d862-4a1e-b1f1-de9096eca0bb.png)
Features & Benefits...
MGW6-4000 Series Electrical ACB Breaker Featured:
An Air circuit breaker integrating high breaking capacity, zero arcing and a variety of intelligent protection functions fully meets the requirements of customers for different currents, different breaking capacity, different wiring, different sizes in all respects.
Optional fixed type and draw-out type.
Improve the structure of the arc-extinguishing chamber and the way of generating of arc assisted by the moving contact.
Remote communication function.
Details...
- Multiple intelligent controller panels are available
- Opening and closing button
- Opening and closing indicator
- Energy storage/release indicator
- Secondary wiring terminal
-
Horizontal connection&vertical connection
![](https://omo-oss-image.thefastimg.com/portal-saas/new2022071513440042804/cms/image/abba9bdf-1a33-4b71-bcb0-e57ef690eb09.jpg)
Product Inquiry
MGW6 ACB Please refer to our latest catalog for full series information.
