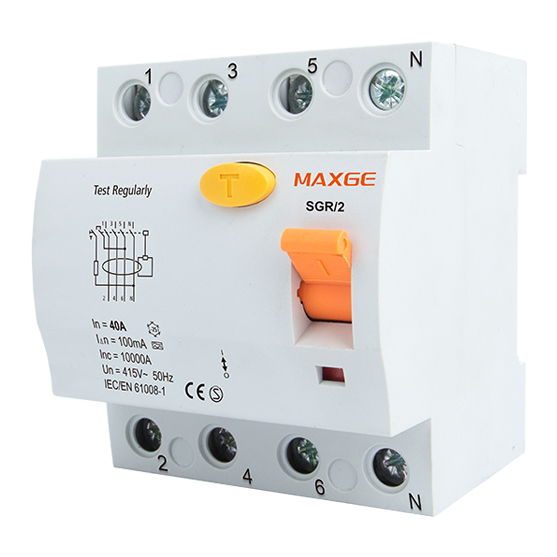

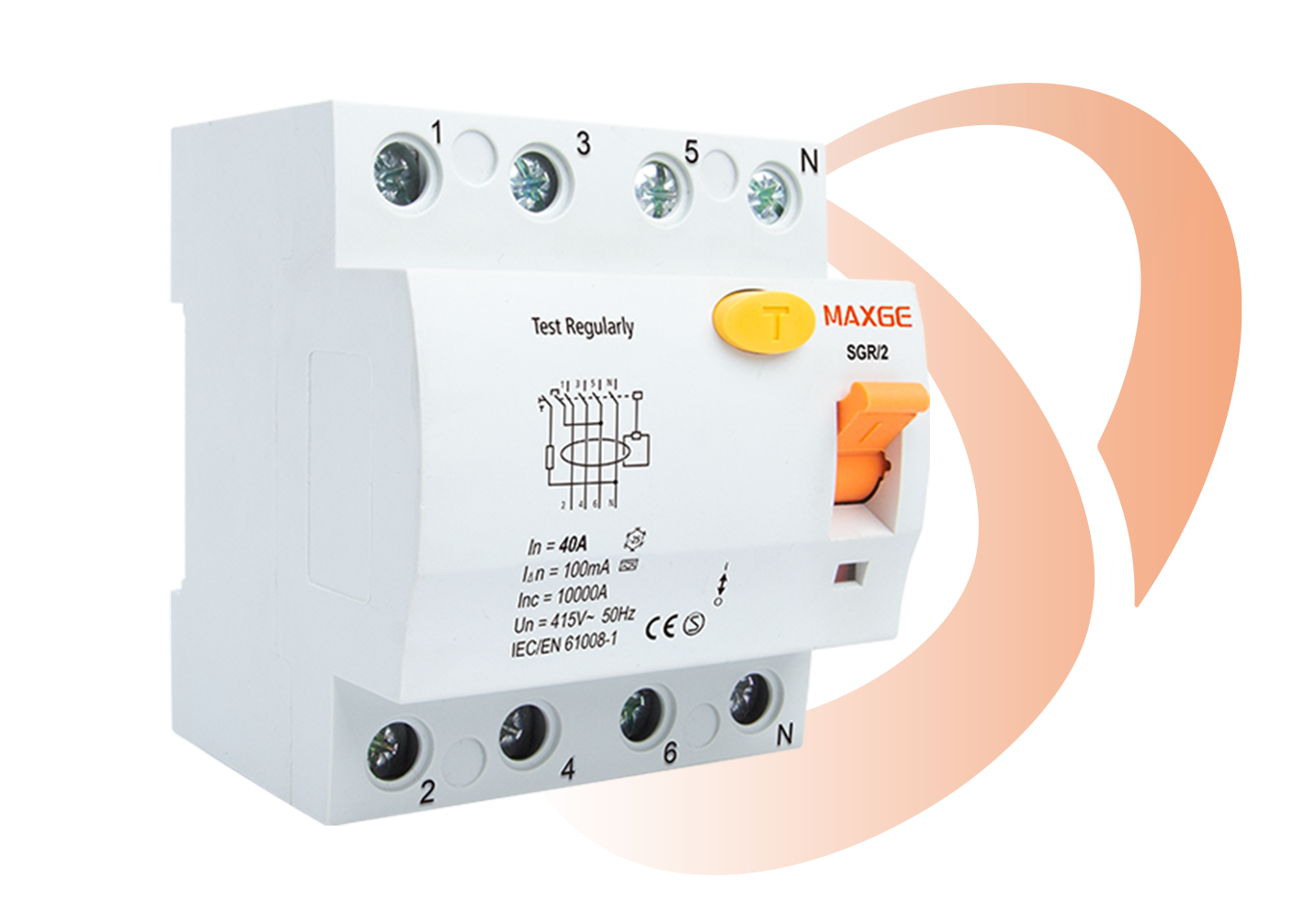

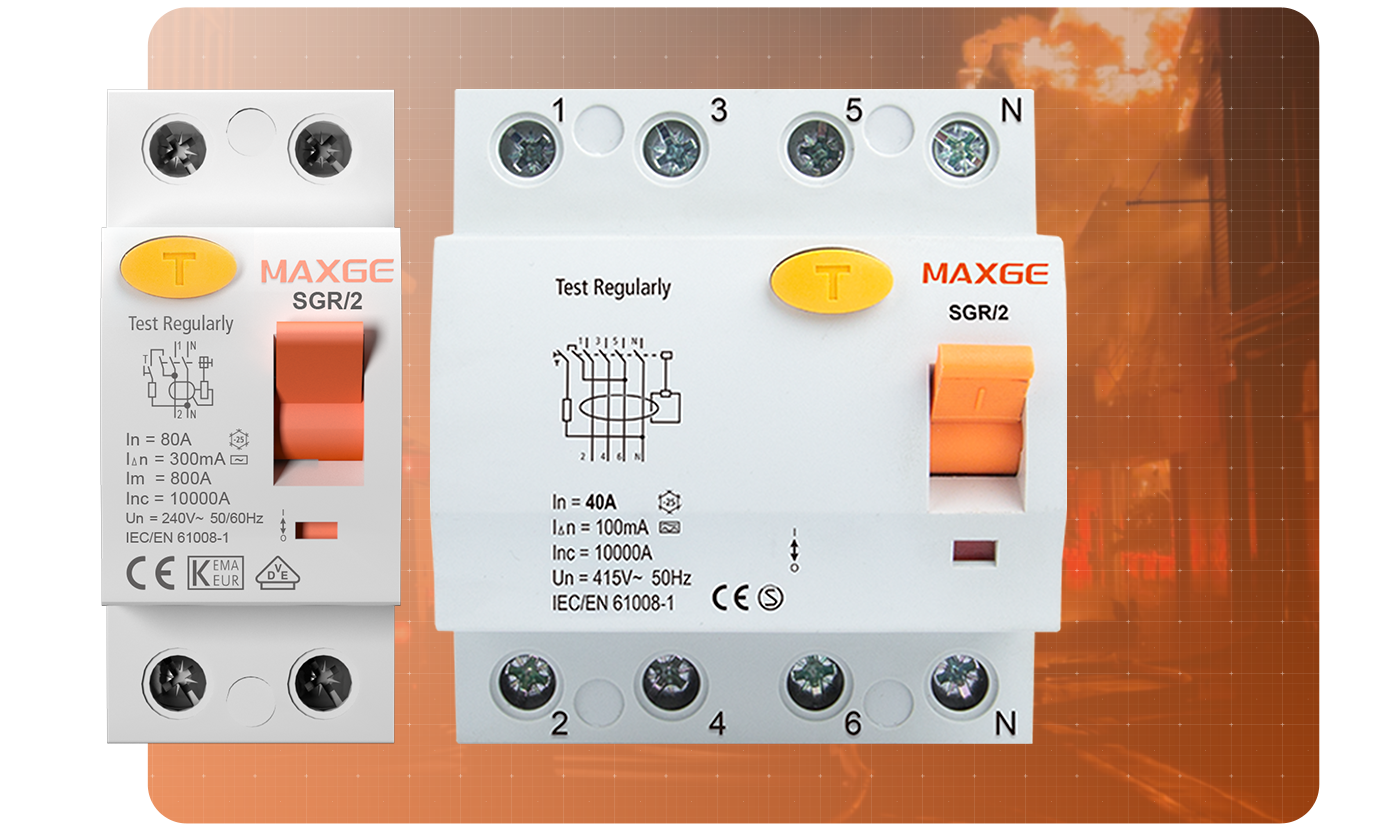

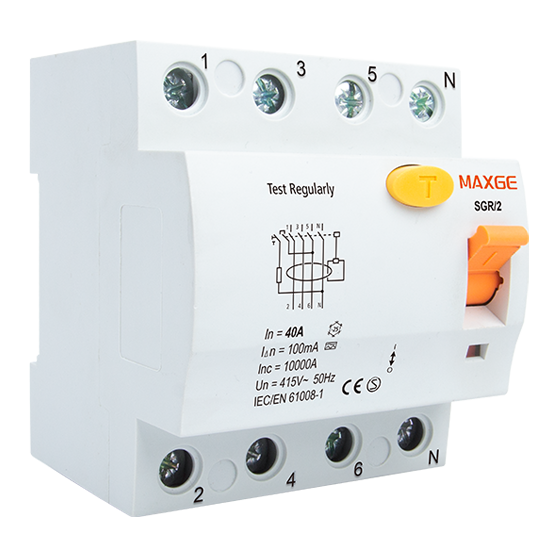

SGR/2 4P Series Residual Current Circuit Breaker

SGR/2 4P Series Residual Current Circuit Breaker

It is suitable for circuits with rated voltage of 240V for two poles, 415V for four poles, and rated current up to 100A. When the personal electric shock or the leakage current of the power grid exceeds the specified value, the RCCB can quickly cut off the faulty power supply in a very short time to protect the safety of the person and electrical equipment. And infrequently switch on and off electrical devices and lighting circuits under normal conditions.

Inquiry

Brief Specification

Rated conditional short-circuit current,Inc: 6/10kA

Rated current,In: 16,20,25,32,40,50,63,80A

Rated voltage: 2pole :240VAC

4pole :415VAC

Number of poles: 2(1+N),4(3+N)pole

Type of trip: Electro-magnetic release

Features & Benefits...

1.Tripping Under AC, Pulsating &Smooth DC Currents.

2.The moving contact is made of T3Y2 material and welded with AgC4 silver dots. The moving contact has good arc corrosion resistance, good electrical conductivity, and good welding resistance, which extends the electrical lifetime of the product.

3.Printing on the handle to indicate the on-off position.

Details...

Neat Appearance
Test Button
Visualization Window
Accessories can be added on the side
Ergonomic Handle
Stable Installation
