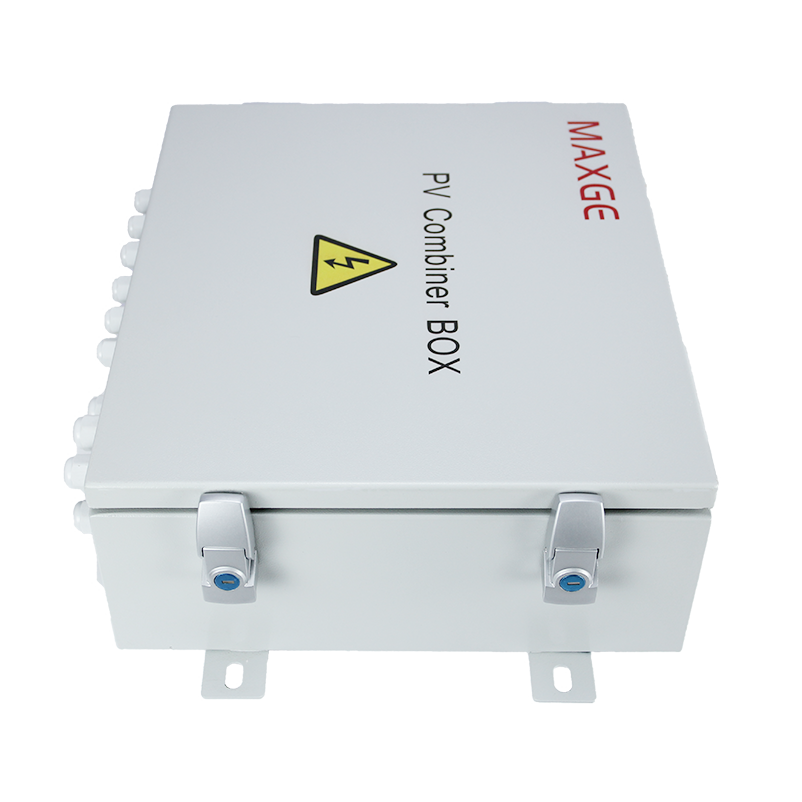

MG-PV6/2 DC Combiner Box
MG-PV6/2 DC Combiner Box
MG-PV6/2 DC Combiner Box
MG-PV6/2 DC Combiner Box
MG-PV6/2 DC Combiner Box
MG-PV6/2 DC Combiner Box
MG-PV6/2 DC Combiner Box
MG-PV6/2 DC Combiner Box
MG-PV6/2 DC Combiner Box

MG-PV6/2 DC Combiner Box

Photovoltaic combiner box is suitable for medium and large photovoltaic grid-connected power generation, distributed photovoltaic power generation, photovoltaic power station and other systems.In order to reduce the connection line between photovoltaic modules and inverters, improve the reliability of the system, and facilitate maintenance, a photovoltaic DC combiner box is added between the PV module and the inverter.
Inquiry

Brief Specification

MG-PV6/2

System maximum dc voltage: 500 1000

Maximum input current for each string: 15A

Maximum input strings: 6

Maximum output switch current: 32A/40A

Number of Output strings: 2

Category of test: ΙΙ grade protection

Nominal discharge current: 20KA

Maximum discharge current: 40KA

Voltage protection level Up: 3.8KV

Maximum continuous operating voltage Uc: 1050V

Poles: 3P

Structure characteristic: Plug-push module



Features & Benefits...



High reliability;

Strong adaptability;

Flexible configuration;

In addition to the material and size, it can be customized according to user requirements.















Details...

  • Metal Material
  • Strictly 35MM DIN rail Installation

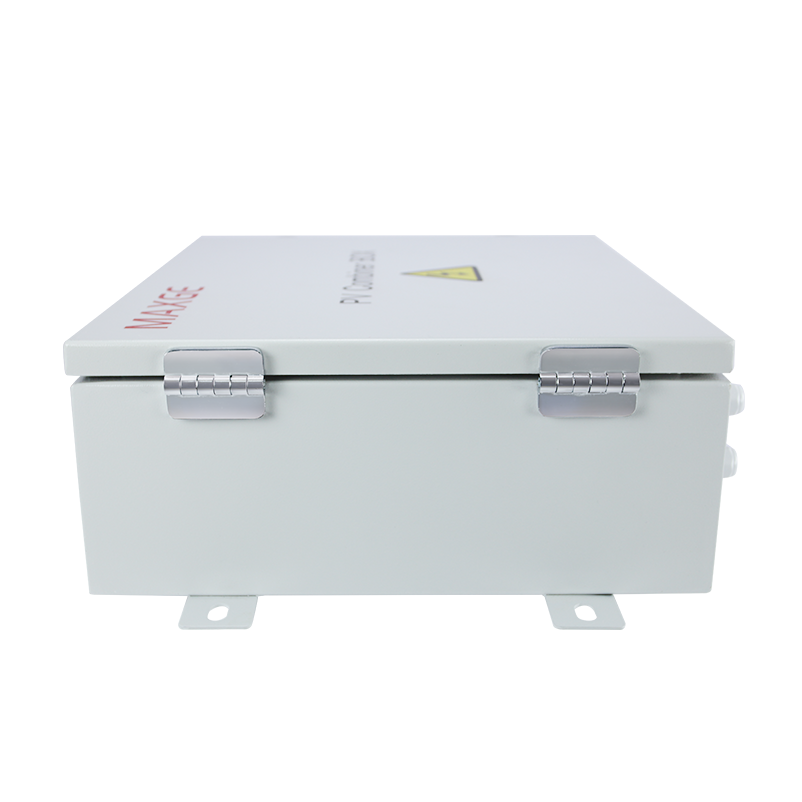

  • 180° Opening and Closing Angle
  • Multiple input strings
  • Stable structure

  • Simple Installation
