SGE1-D25

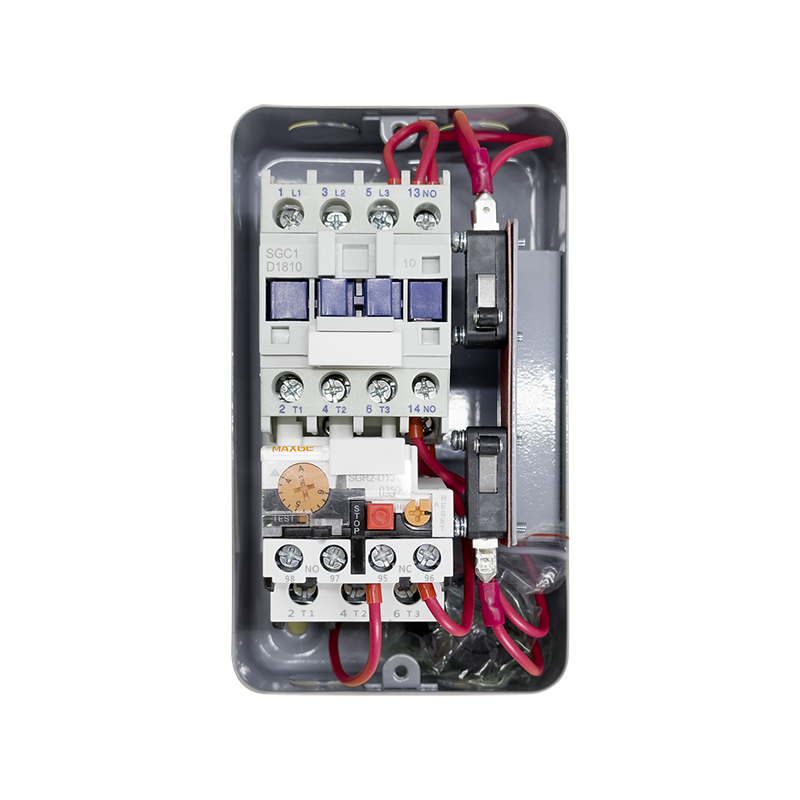

A magnetic starter is an electrical control device that combines an AC contactor and thermal overload relay to provide motor starting and protection functions. The MAXGE SGE1-D Series Magnetic Starter integrates control buttons, contactor, and overload protection components, providing a compact solution for motor control applications.

Rated current: 09–95A
Rated operating voltage: Up to 690V AC
Compliant with IEC 60947-4-1 / IEC 60943-1
Protection degree: IP65
CE certified
-5℃~+40℃ operation, -40~+75℃ storage, altitude ≤2000m

Product
Description

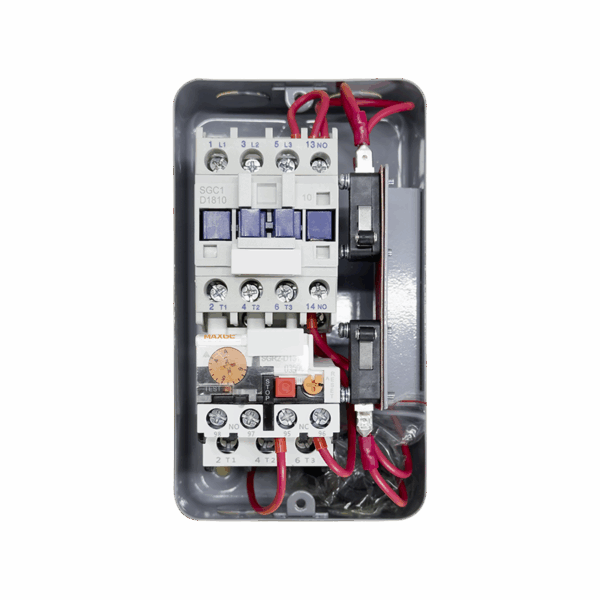

The MAXGE SGE1-D Series Magnetic Starter is designed for motor control applications, integrating an AC contactor and thermal overload relay into a compact control solution. With an electric rating range of 09–95A and rated operating voltage up to 690V, it provides reliable switching and motor protection performance

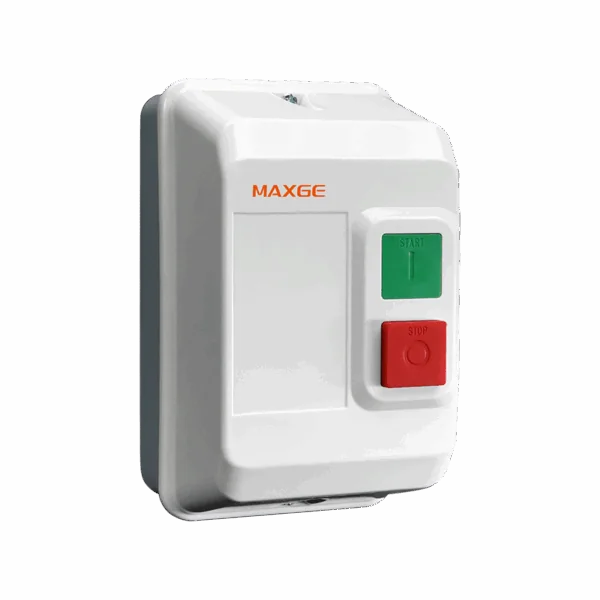

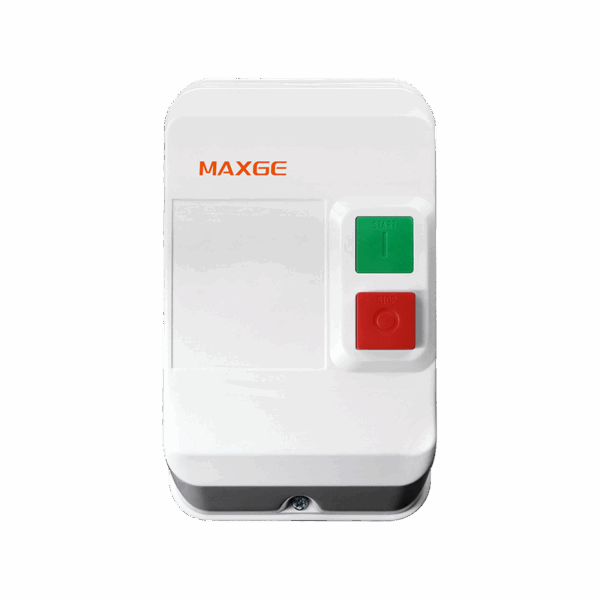

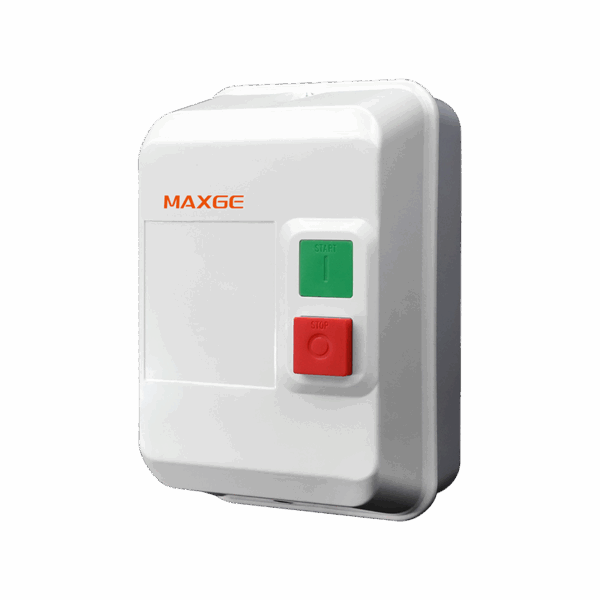

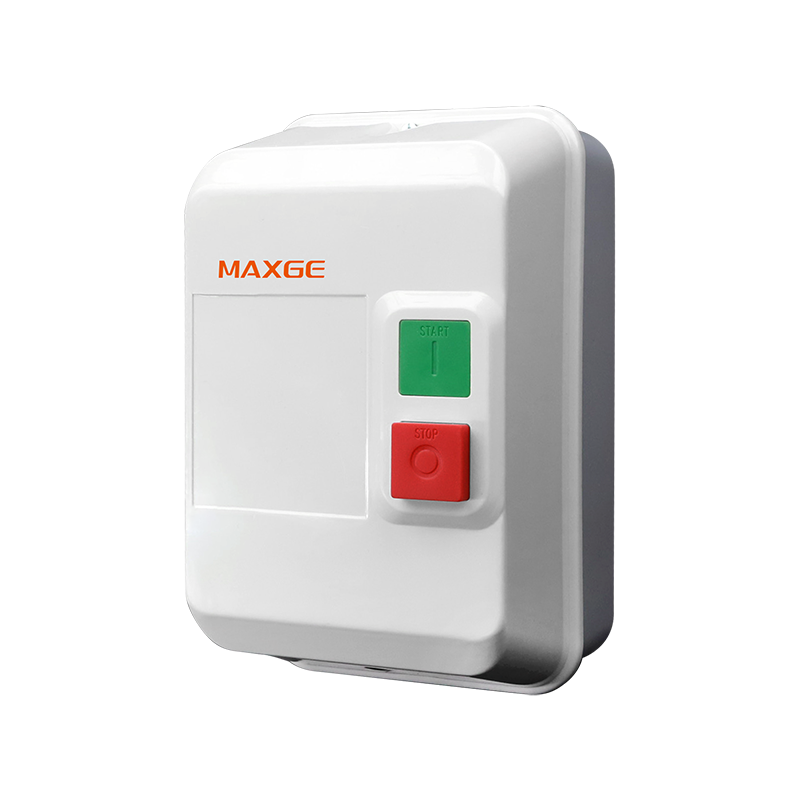

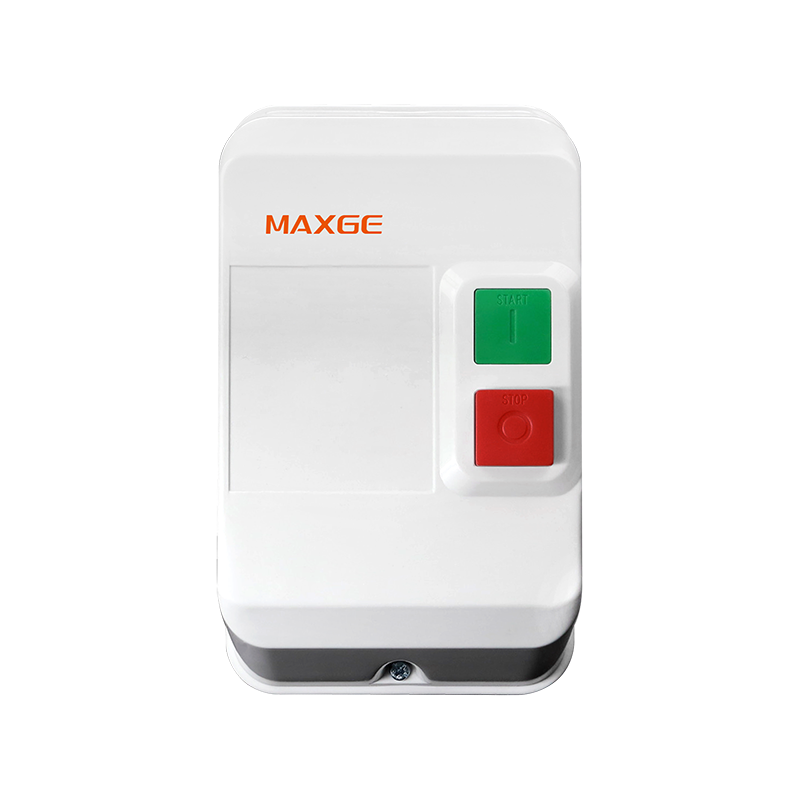

The series complies with IEC 60947-4-1 / IEC 60943-1 standards and features IP65 protection, suitable for different installation environments. Equipped with green start and red stop/reset buttons, the SGE1-D Series simplifies operation and control. It is compatible with SGC1-D Series AC Contactors and SGR2-D Series Thermal Relays, offering a complete solution for motor starting and protection systems.
