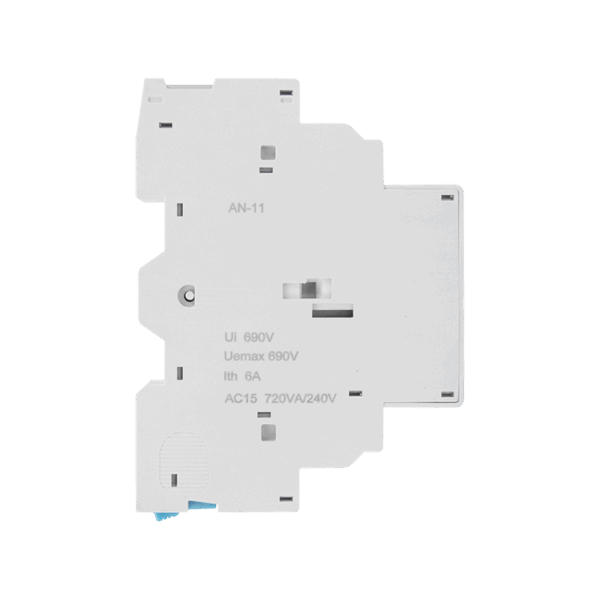

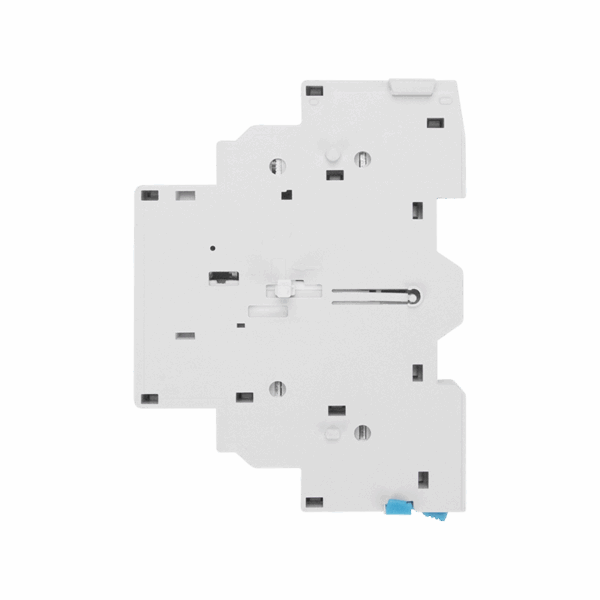

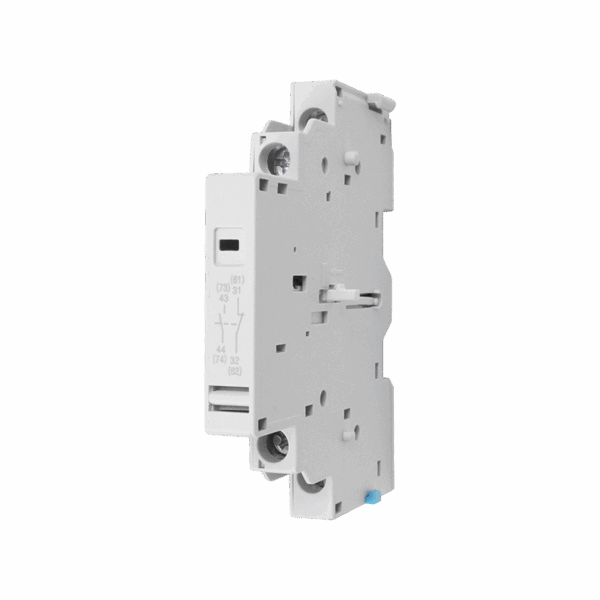

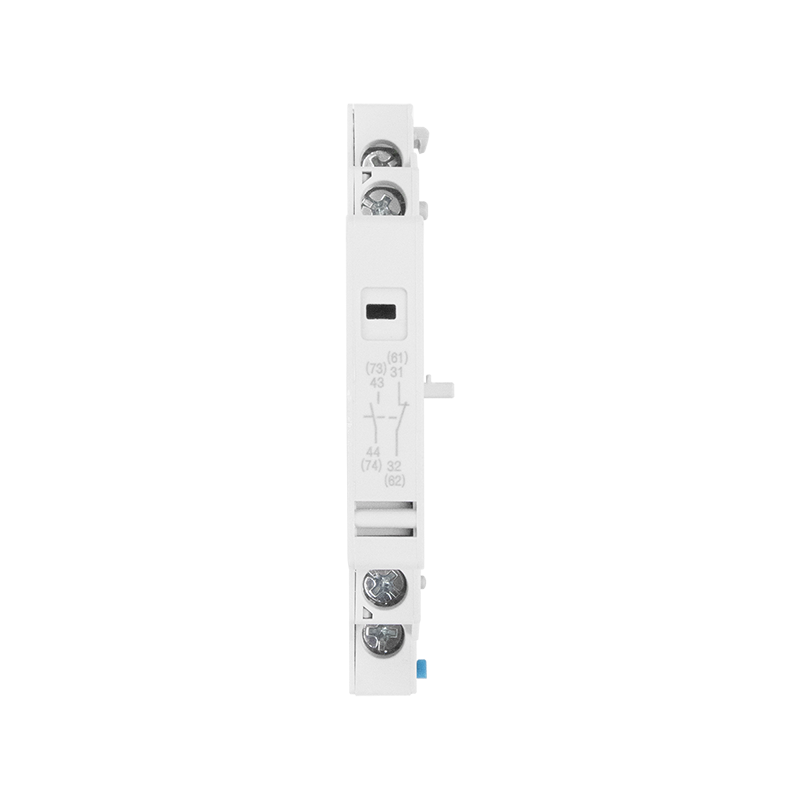

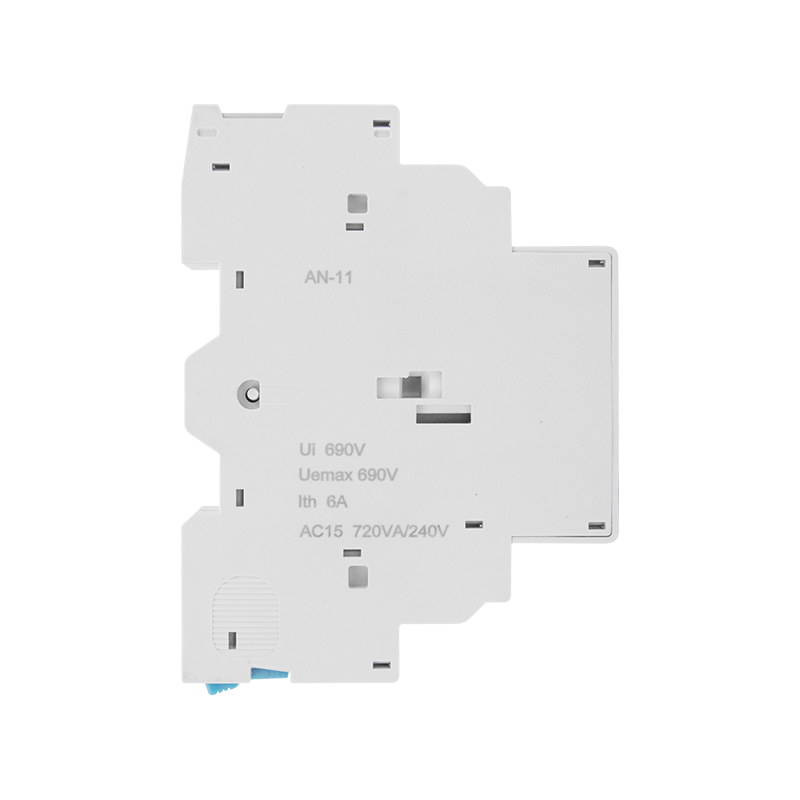

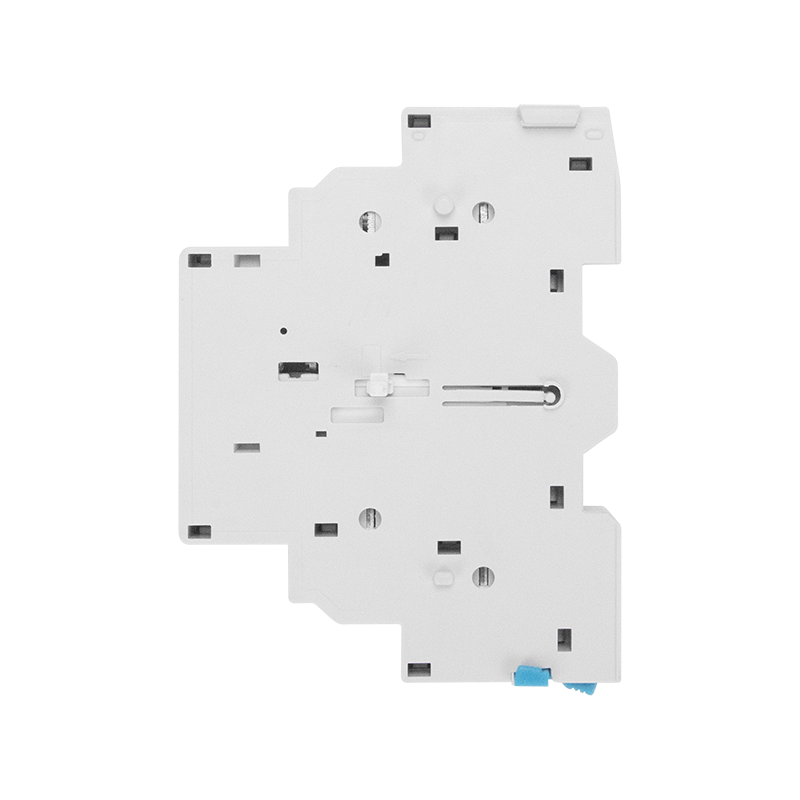

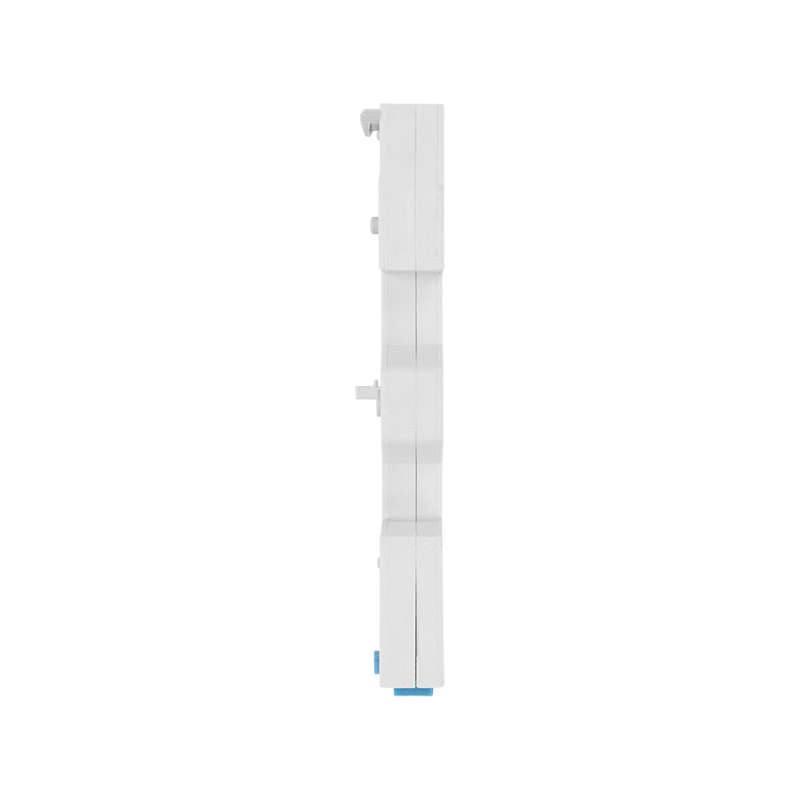

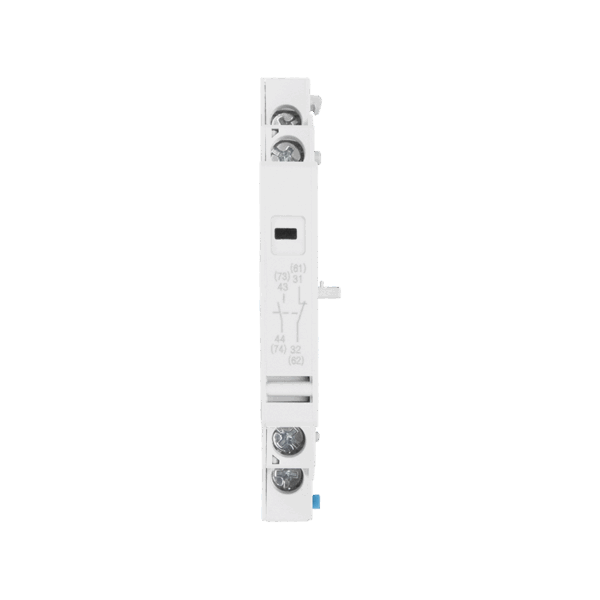

SGV2-I-ME AN11

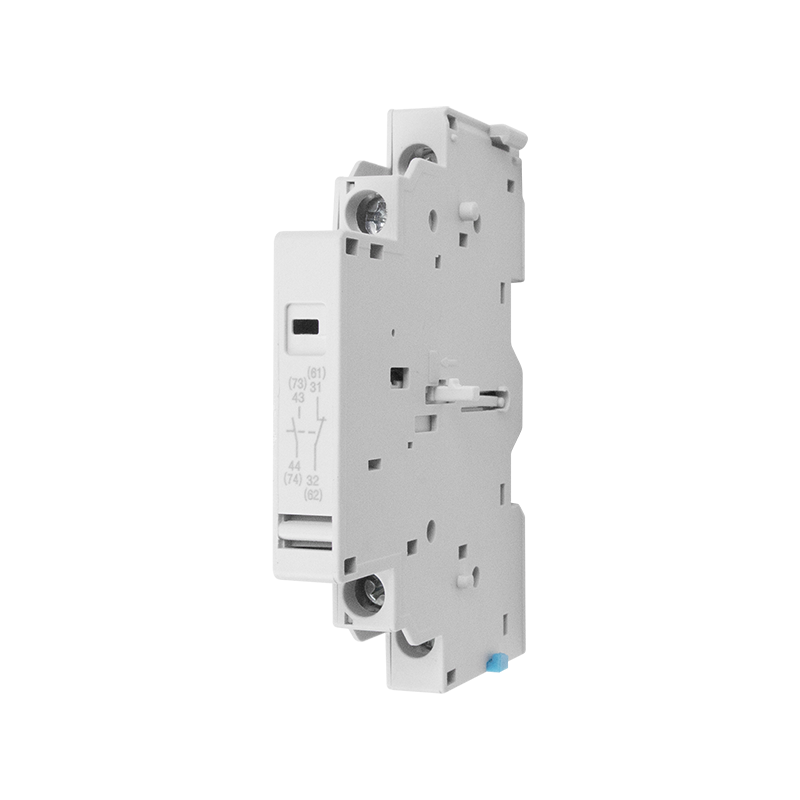

Side-installed auxiliary contact modules matched with SGV2-I-ME/PM Series motor protection circuit breakers, expanding multi-circuit remote signal output capacity.

  • Two contact options: 1NO+1NC, 2NO.
  • Side snap mounting for easy installation at breaker side terminals.
  • Ith=6A thermal current, ideal for heavy-load signal control circuits.
  • Compact design, no obstruction to main breaker wiring.

Product
Description

Side-mount auxiliary contact modules are tailored for SGV2-I-ME/PM Series motor protection circuit breakers to expand multi-channel remote signal output functions.

This expandable signal accessory snaps onto the side of the main breaker to add extra control signal channels. Two standard contact configurations are offered to meet various automated interlock needs. Differing from top-mounted auxiliary contacts, it features a 6A thermal rated current to accommodate higher-load signal circuits such as intermediate relays and heavy-duty indicators. Its lateral modular design avoids obstructing front operating buttons, enabling flexible multi-group signal feedback without altering the overall installation dimension of the main unit.
