SGM3EL-400CY

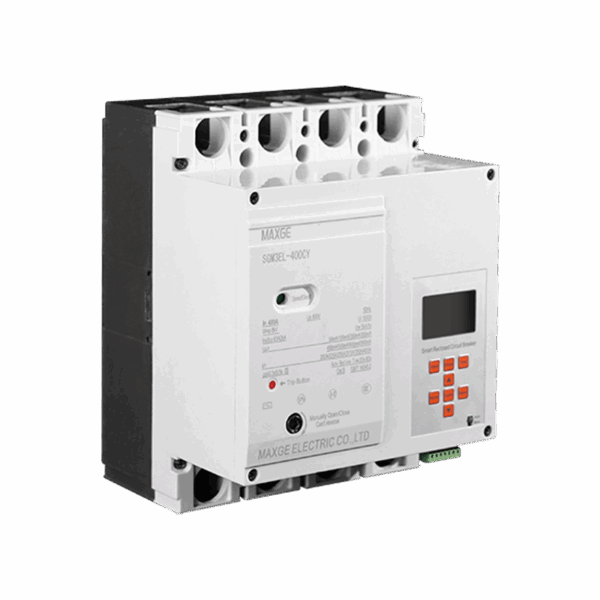

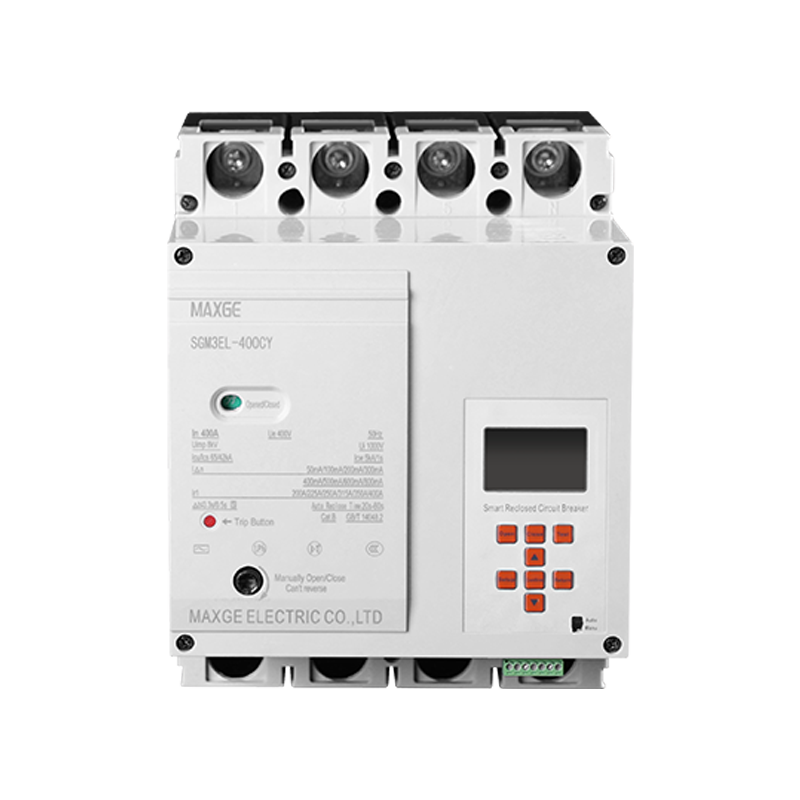

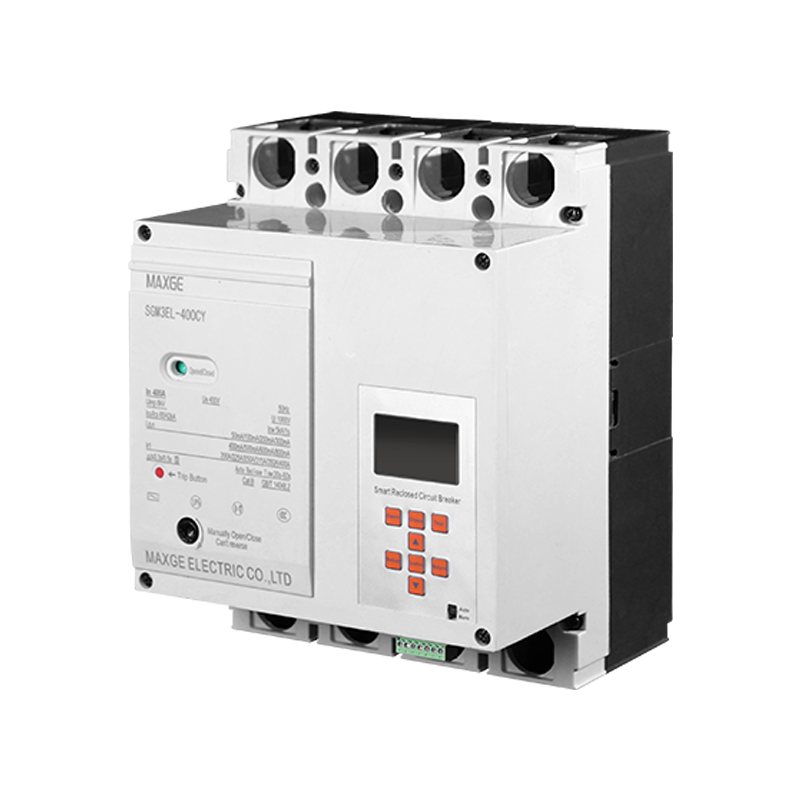

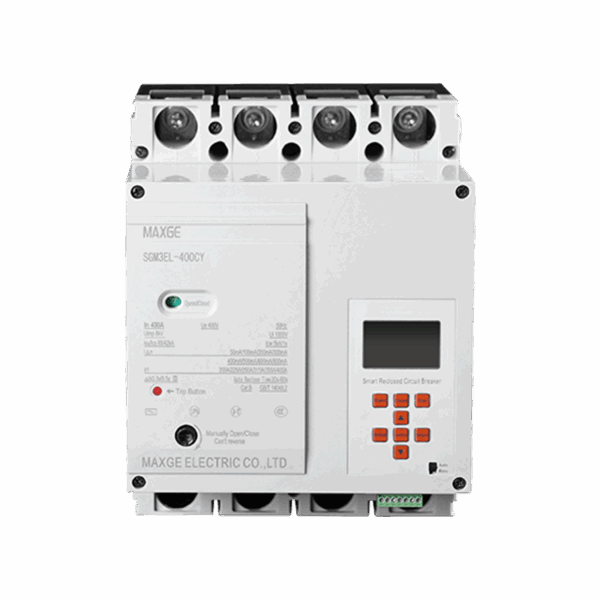

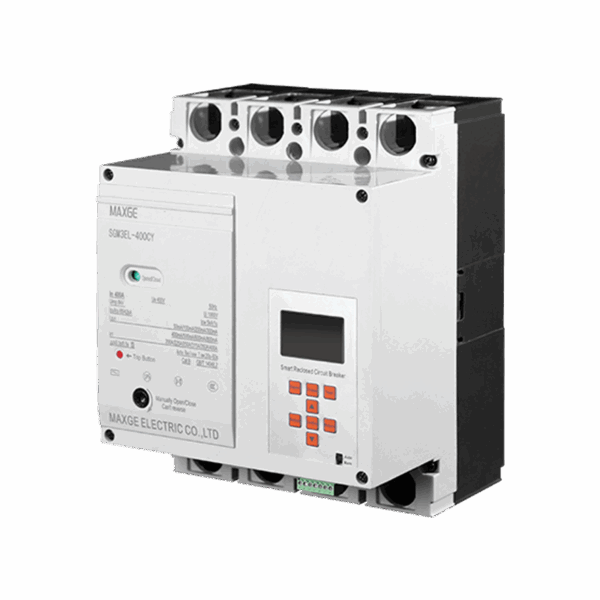

The SGM3EL-400CY series smart moulded case circuit breaker is an intelligent high-end power distribution protection product of MAXGE manufactured in accordance with industry standard specifications, dedicated to intelligent power distribution, fault monitoring and comprehensive circuit protection for industrial, commercial and building power supply systems.

  • Cambered projecting panel
  • Anti-touch transparent cover
  • Anti-flame & insulated enclosure
  • Ergonomic operating handle
  • Multi-functional intelligent measurement
  • RS-485 network communication

Product
Description

The SGM3EL-400CY series smart moulded case circuit breaker adopts 3P+N pole type with 400A/630A frame size, covering set current from 200A to 630A, applicable to AC 50Hz 400V power system with rated insulation voltage up to 800V and rated impulse withstand voltage up to 8000V. It owns rated short-circuit breaking capacity up to 65kA and residual short-circuit breaking capacity up to 20kA, integrating overload, short circuit, residual current, overvoltage, undervoltage and phase loss protection, supporting three-phase voltage and current measurement, parameter setting, auto-reclose and DLT 645 communication function for intelligent network power distribution management.

To ensure long-term reliable operation of Moulded Case Circuit Breakers (MCCBs), follow strict maintenance protocols: Before work, disconnect power and verify de-energization while wearing insulated gear. Inspect housing for cracks and discoloration regularly, check and tighten wiring terminals in accordance with standard torque requirements. Operate the switch handle repeatedly to ensure flexible opening, closing and tripping reset function. Regularly check insulation performance, communication status and protection action accuracy, keep the product surface clean and dry, and conduct routine inspection and maintenance every half year or one year according to indoor and outdoor environmental conditions.
