Products series

SGB2

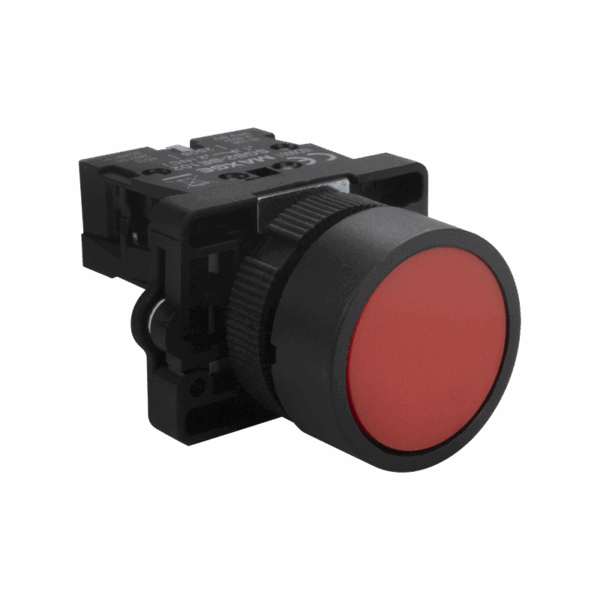

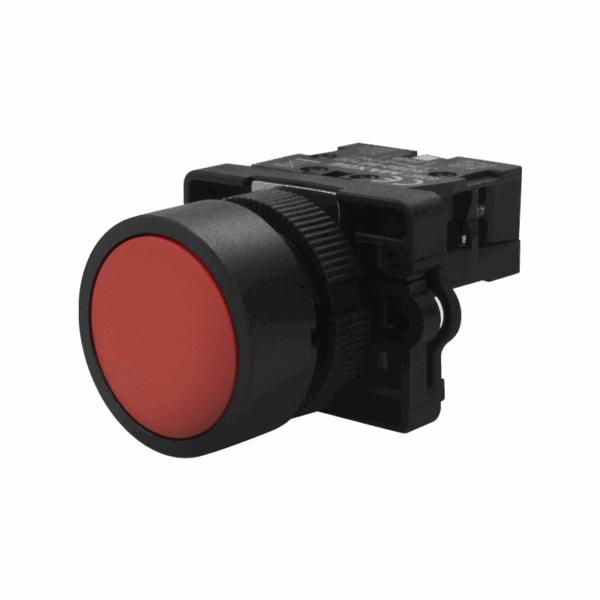

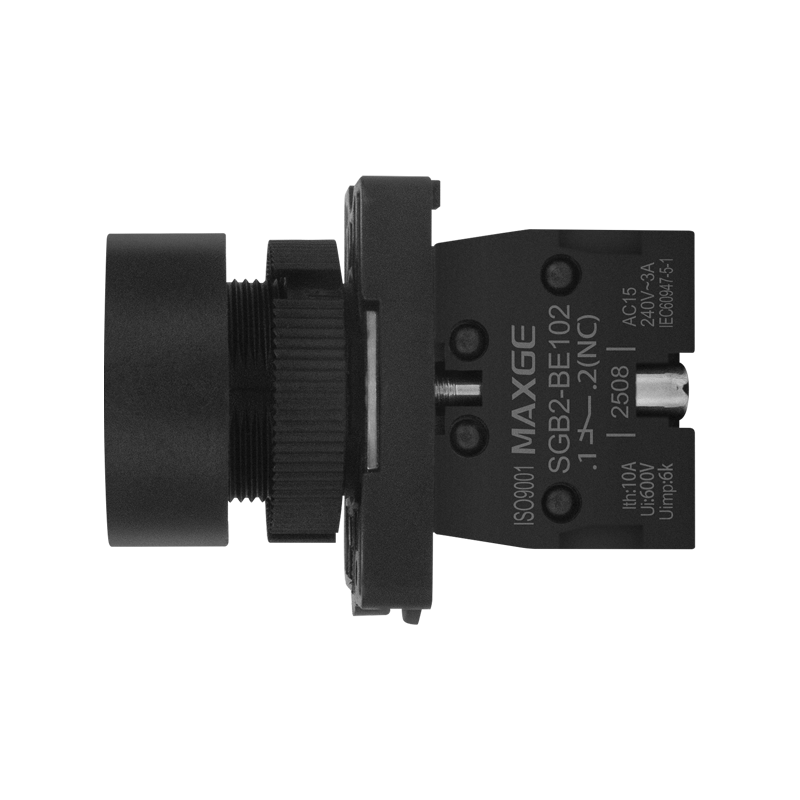

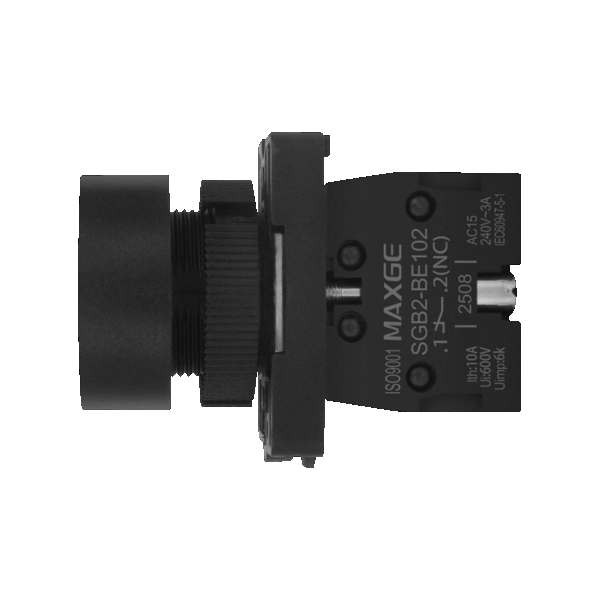

Complete control component series includes push buttons, selector switches, LED indicators and matching installation accessories for low-voltage control cabinets.

  • Rated insulation voltage 400V, 50/60Hz, impulse withstand 6kV.

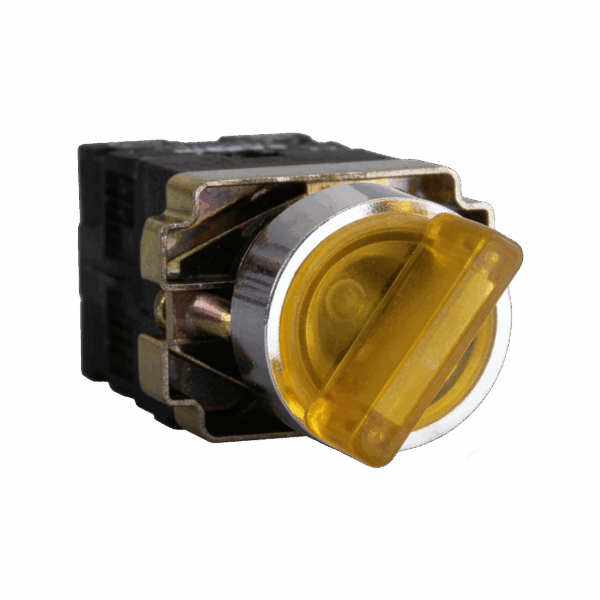

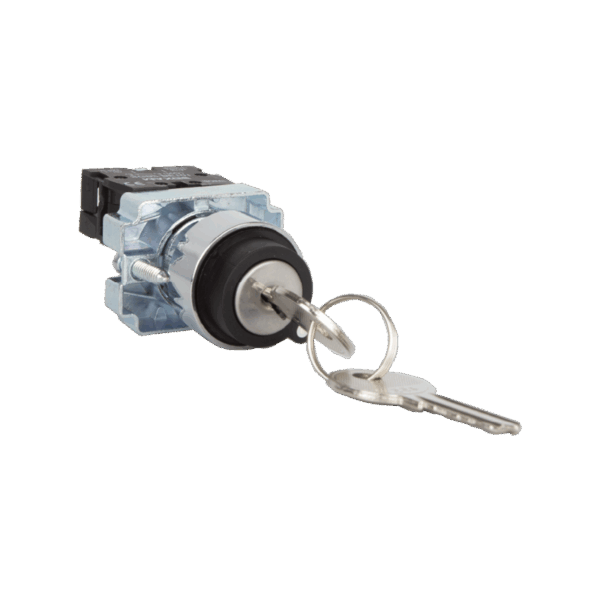

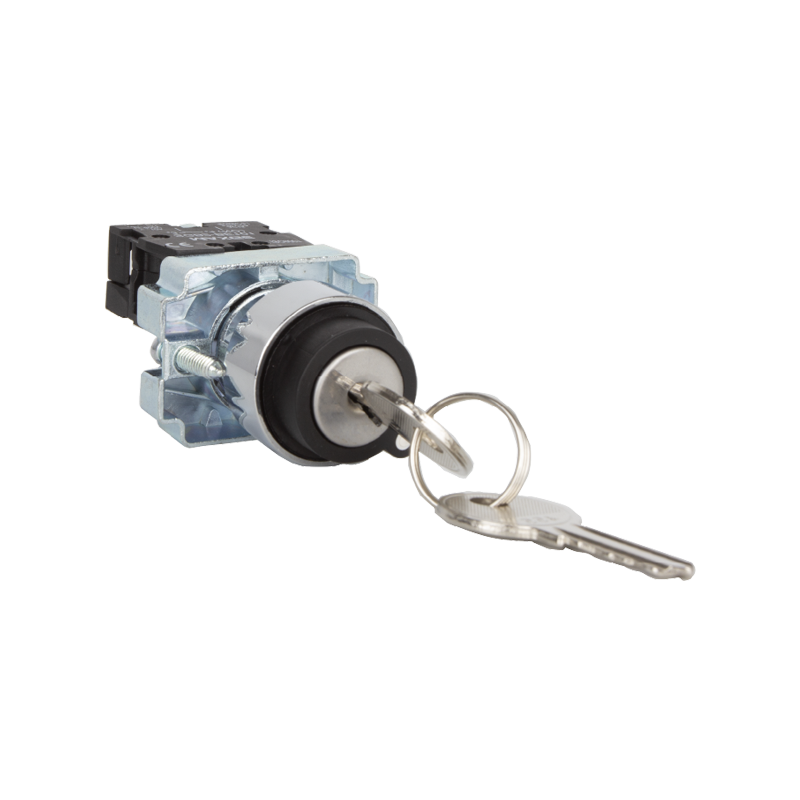

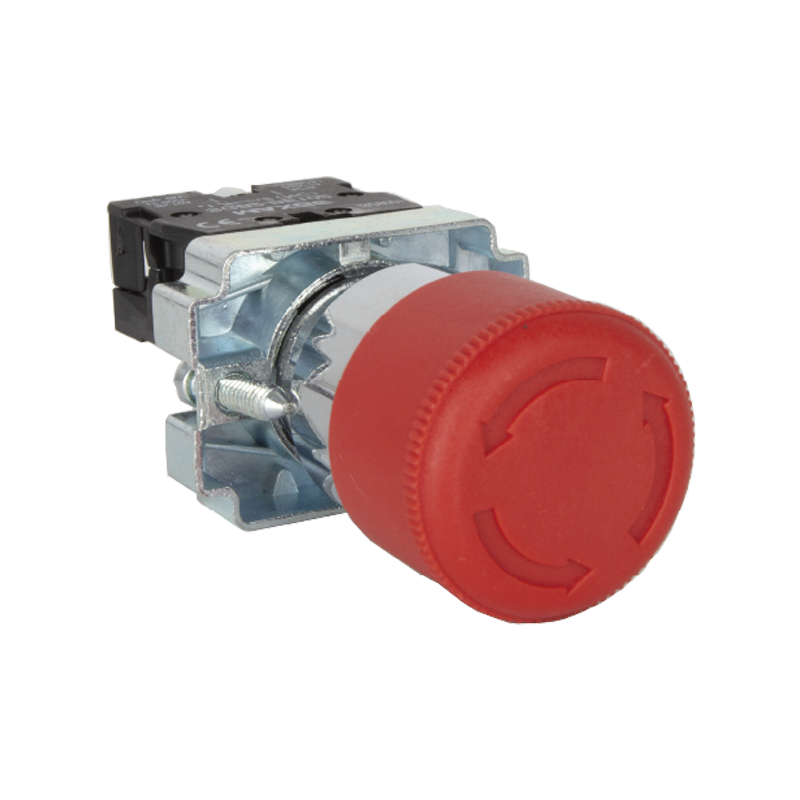

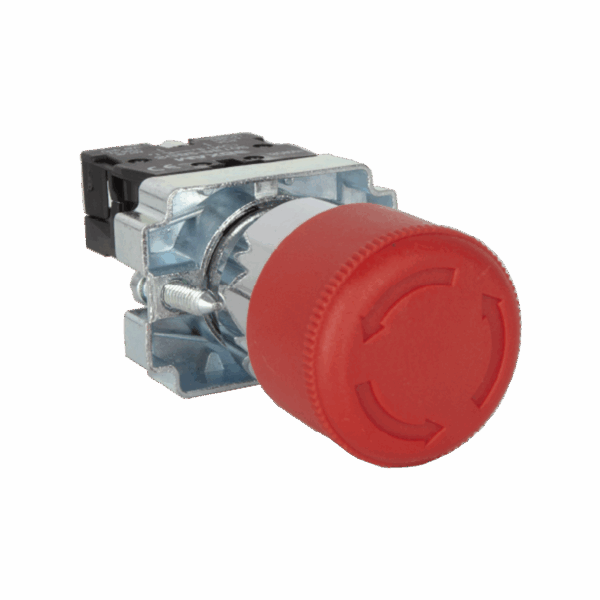

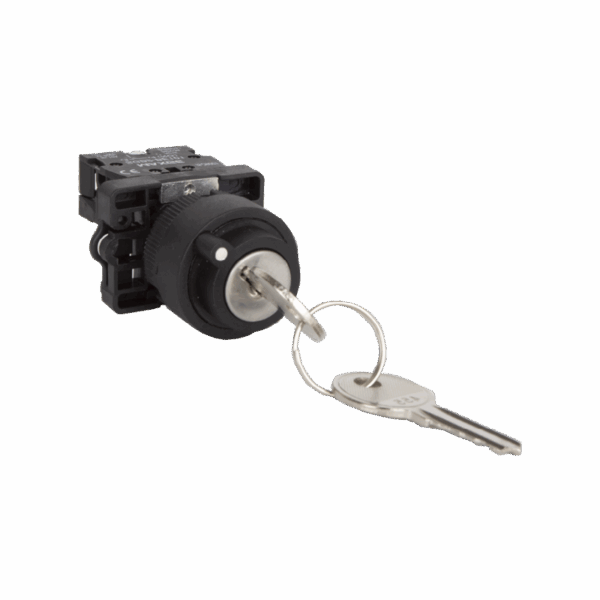

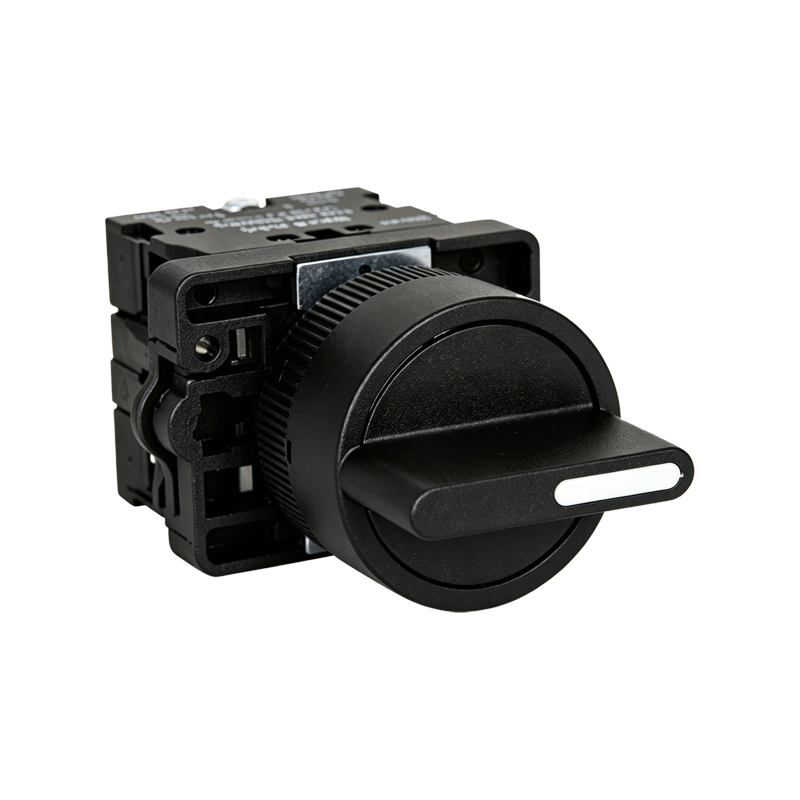

  • Types: spring return, mushroom emergency stop, 2/3-position selectorr.

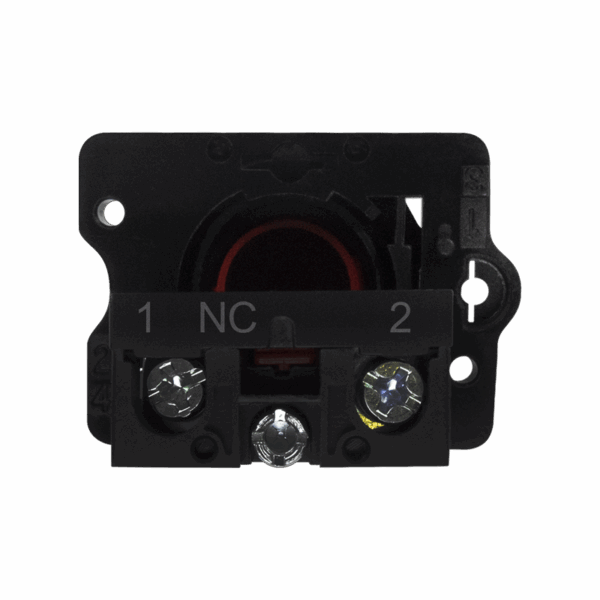

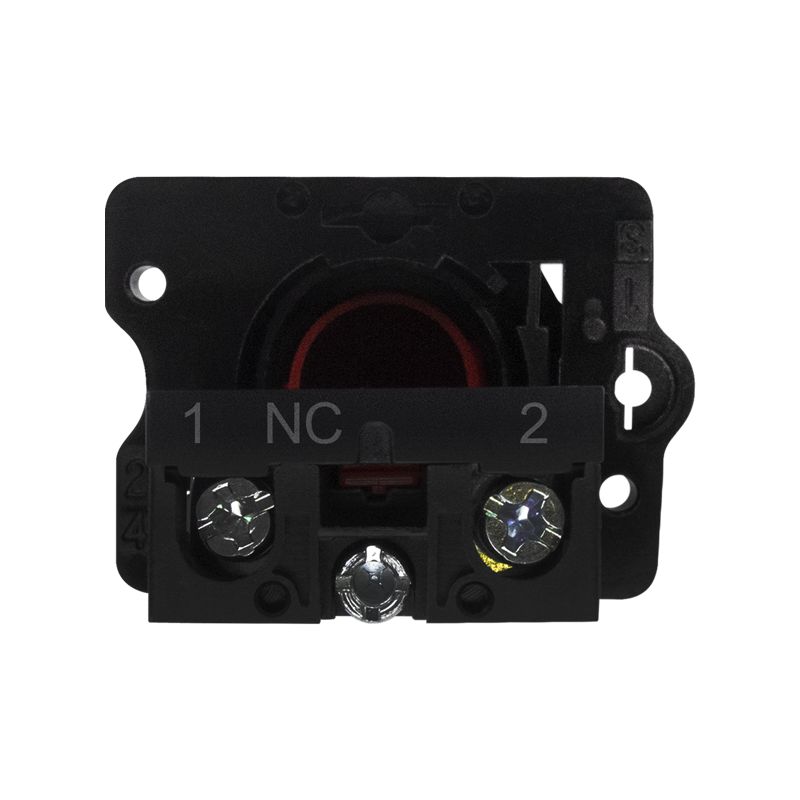

  • Contact options: 1NO, 1NC, 1NO+1NC.
  • Multi-color LED: 24V AC/DC, 230V A.
  • Supports matched bases, mounting frames and alarm auxiliary contacts

Product
Description

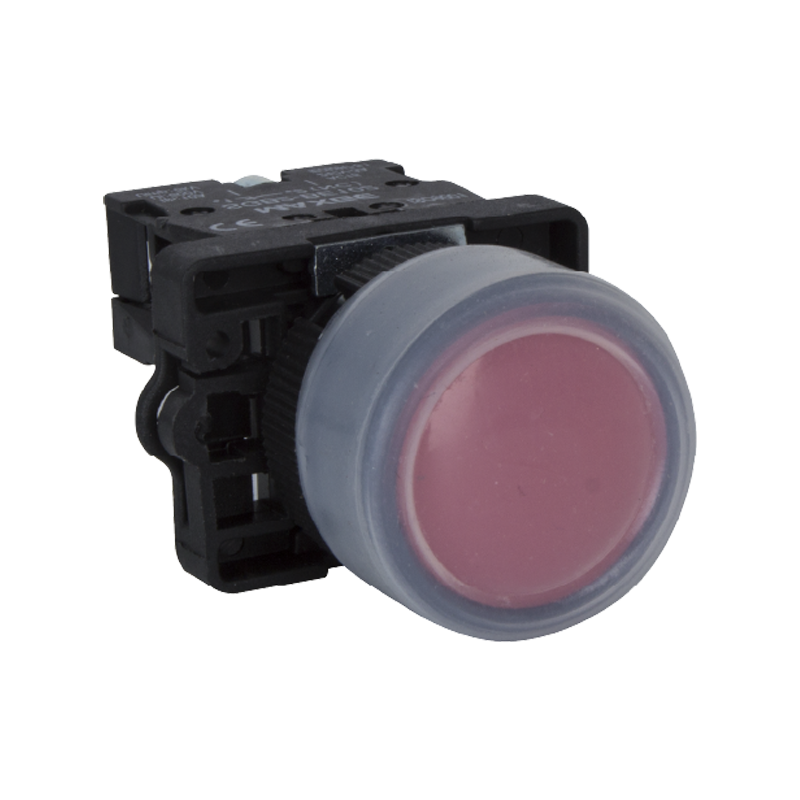

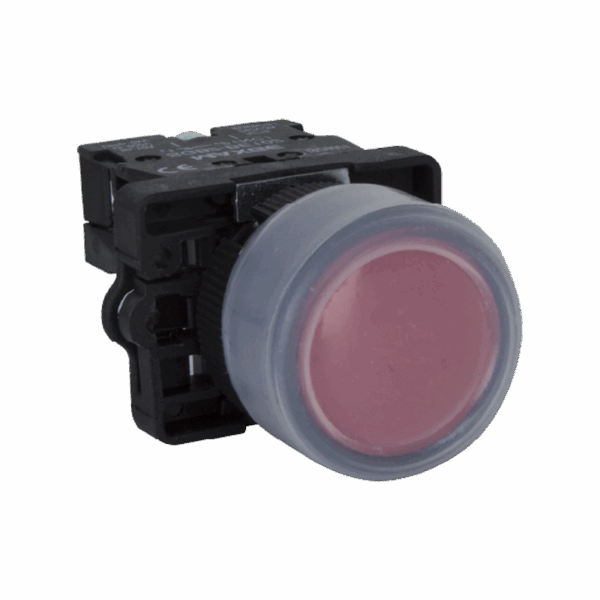

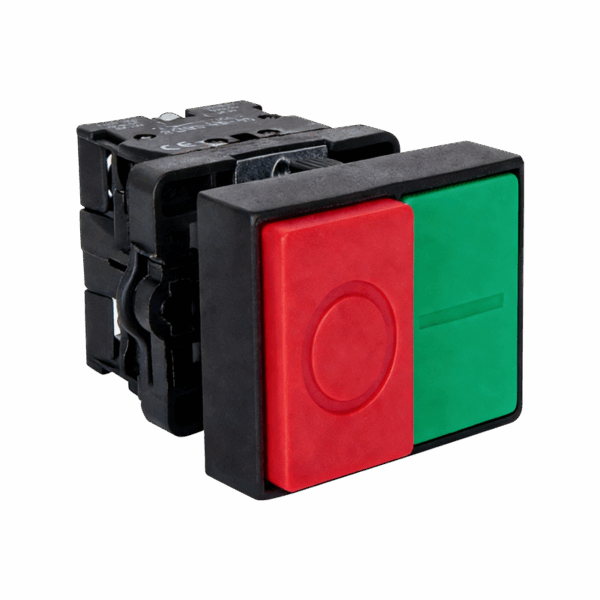

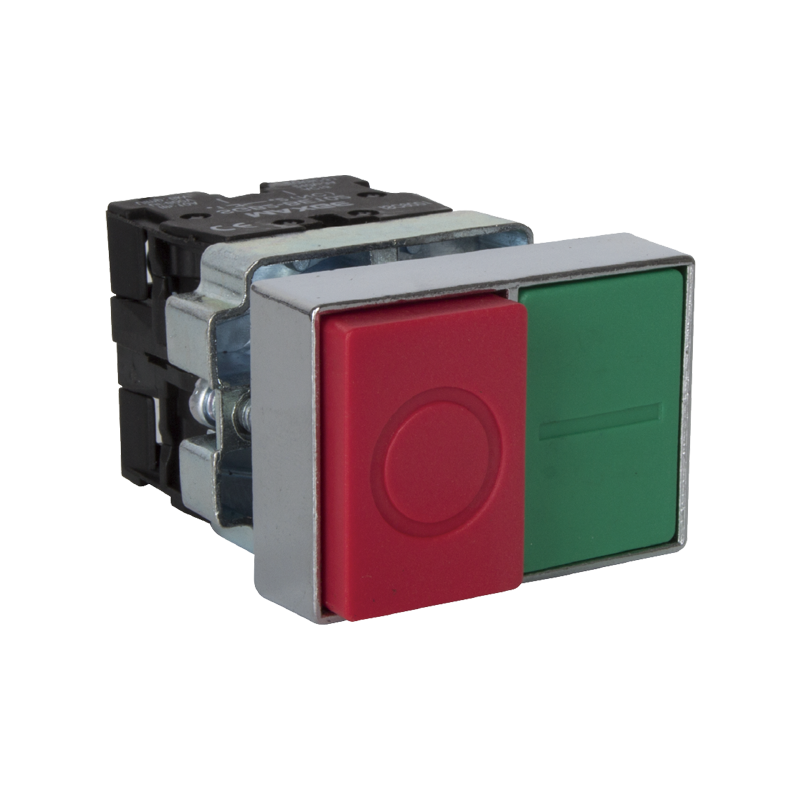

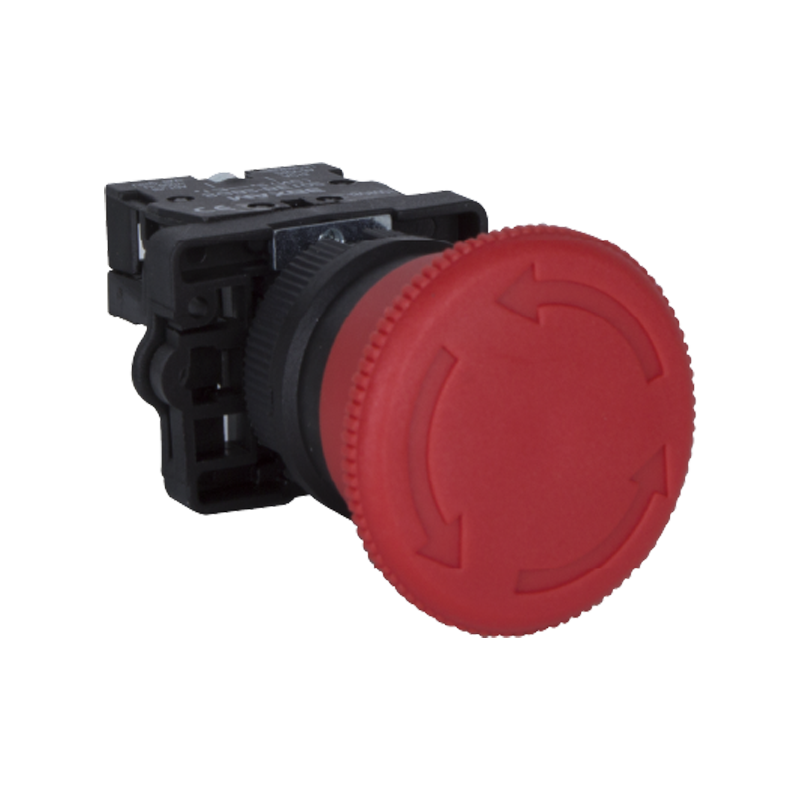

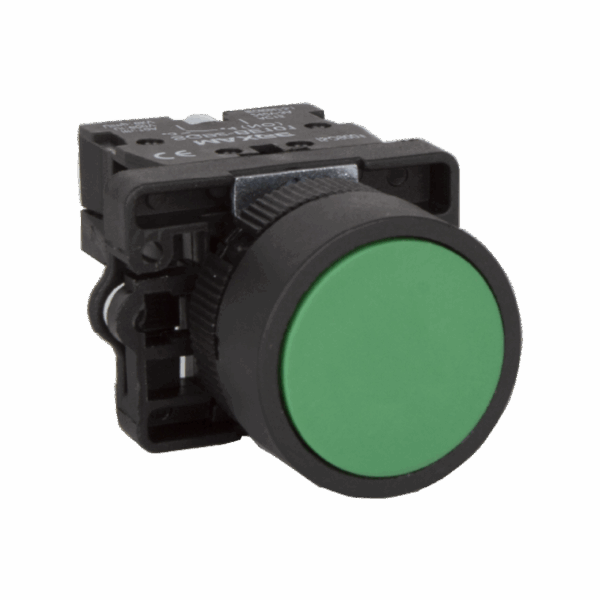

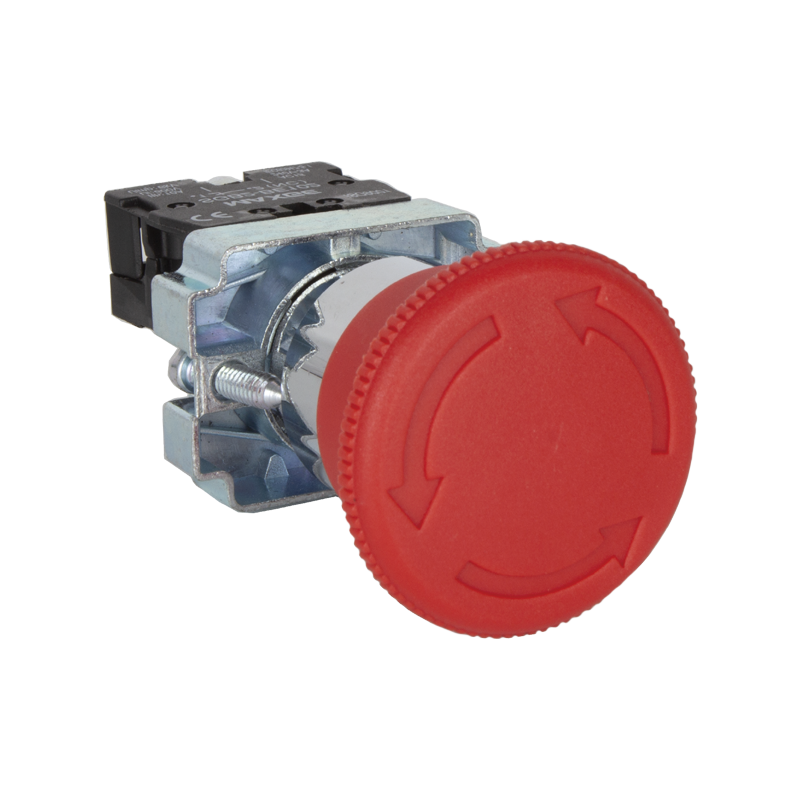

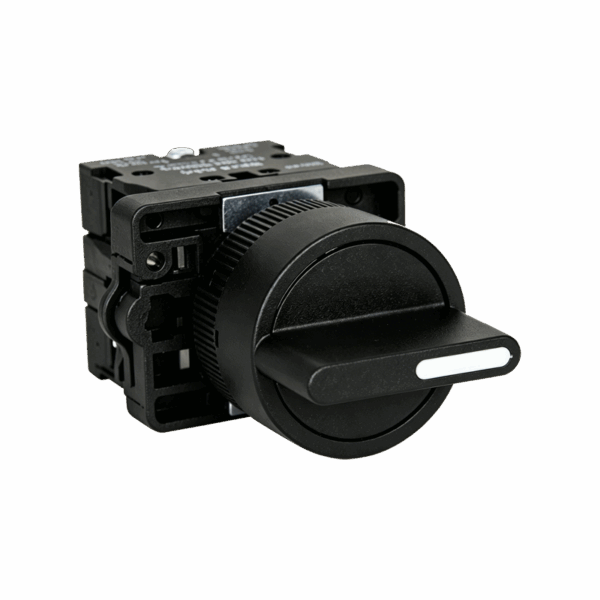

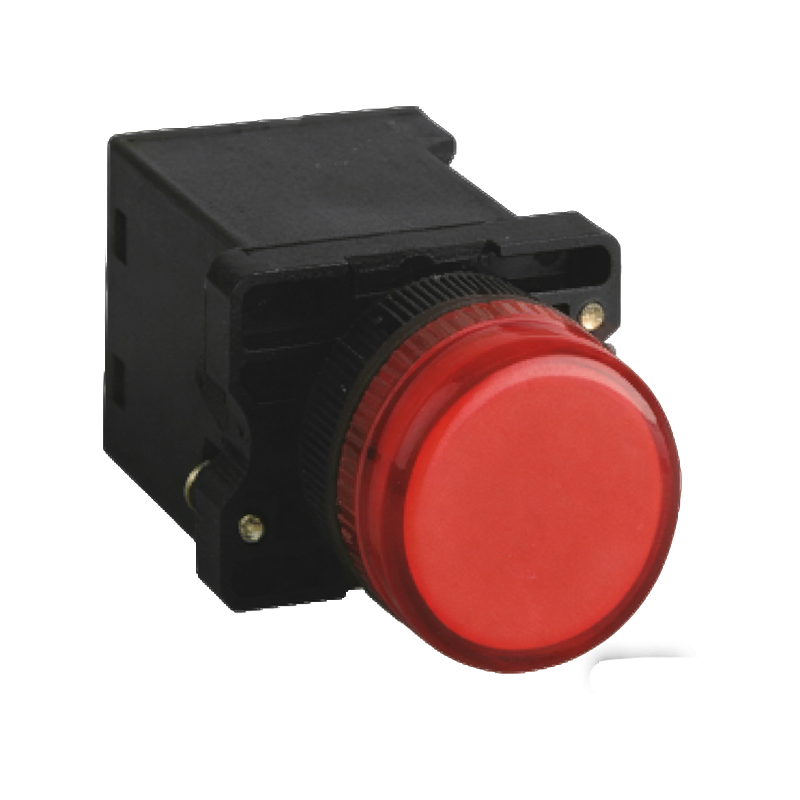

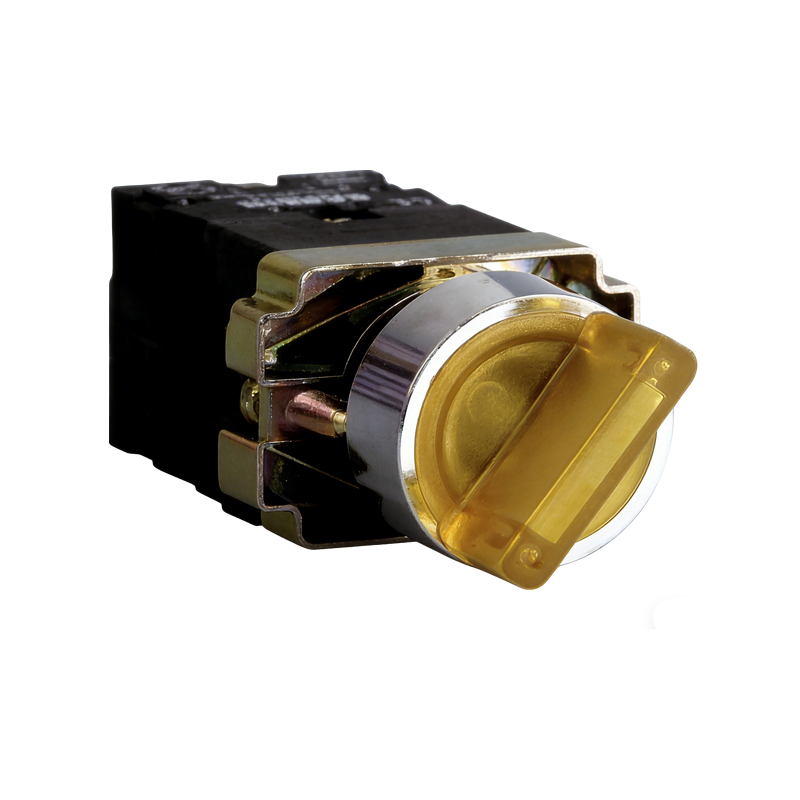

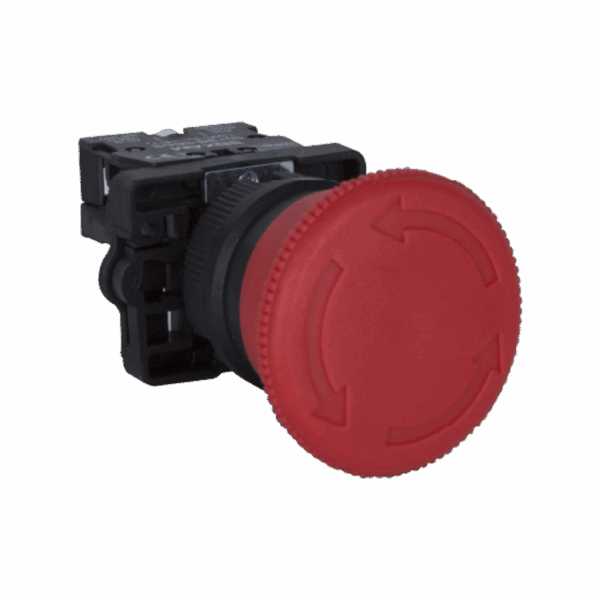

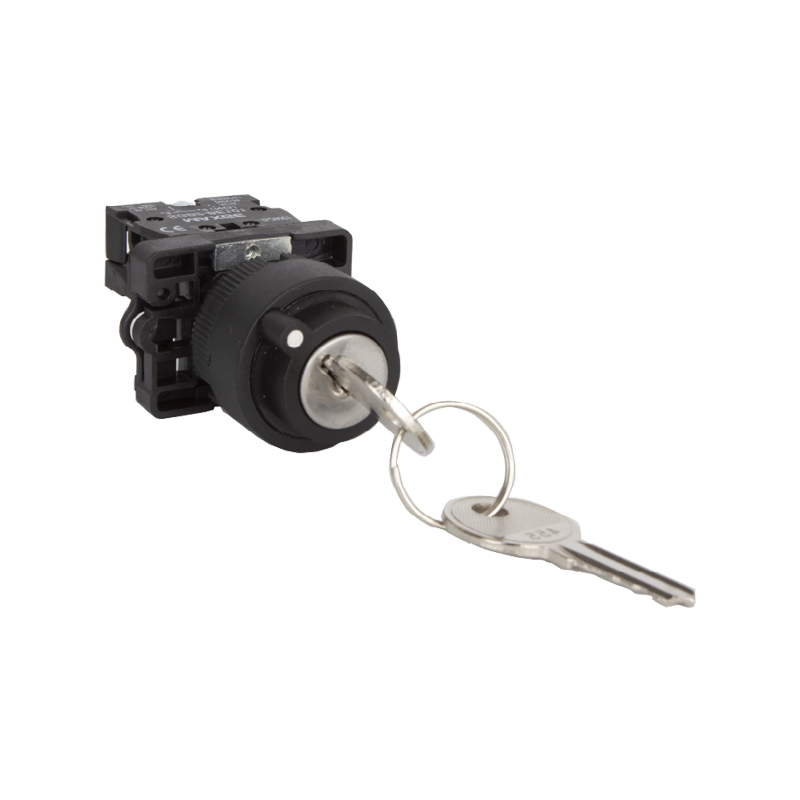

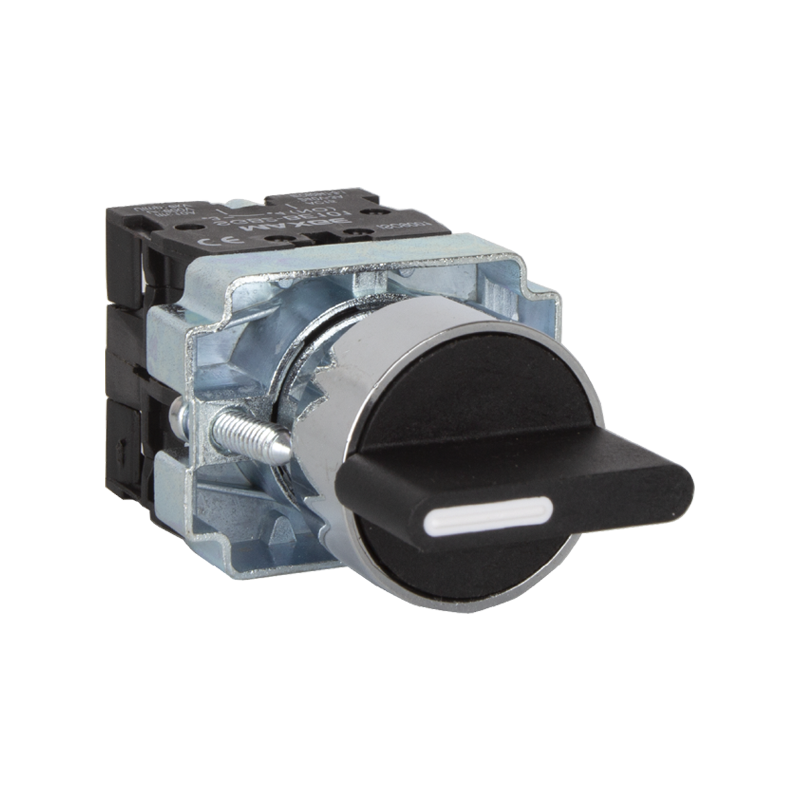

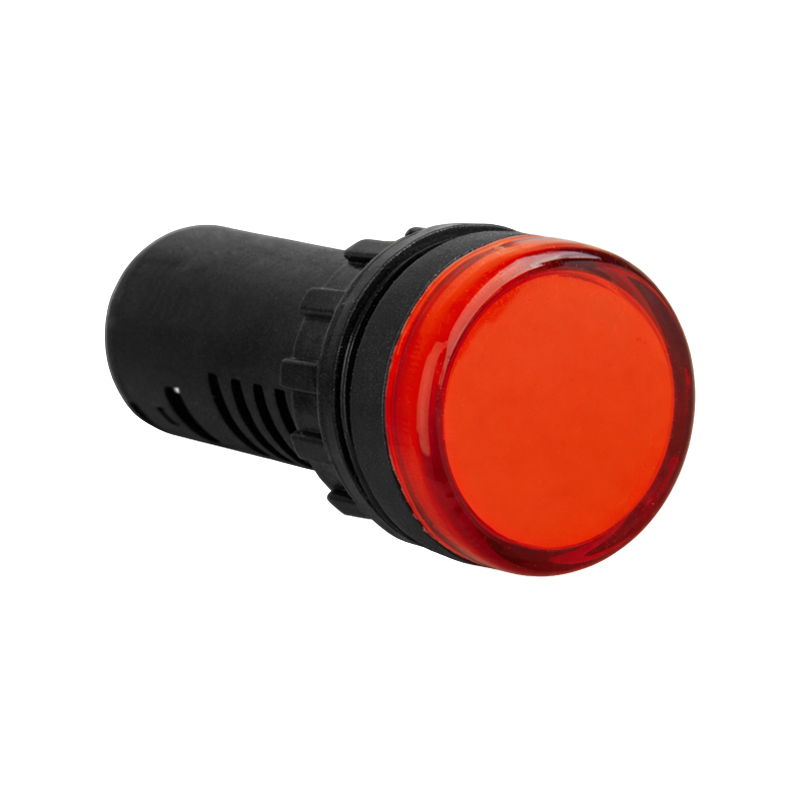

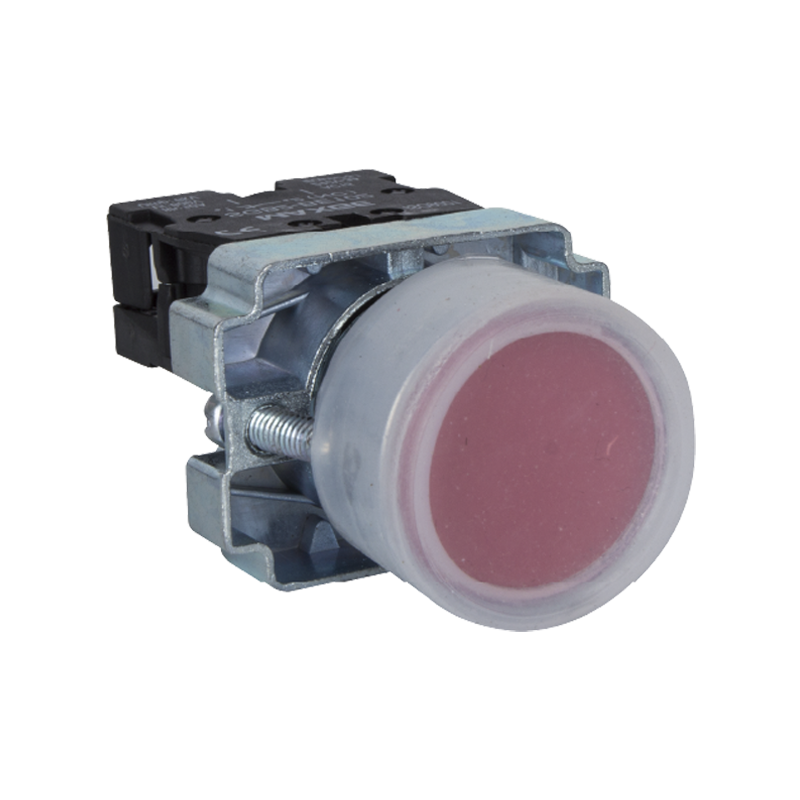

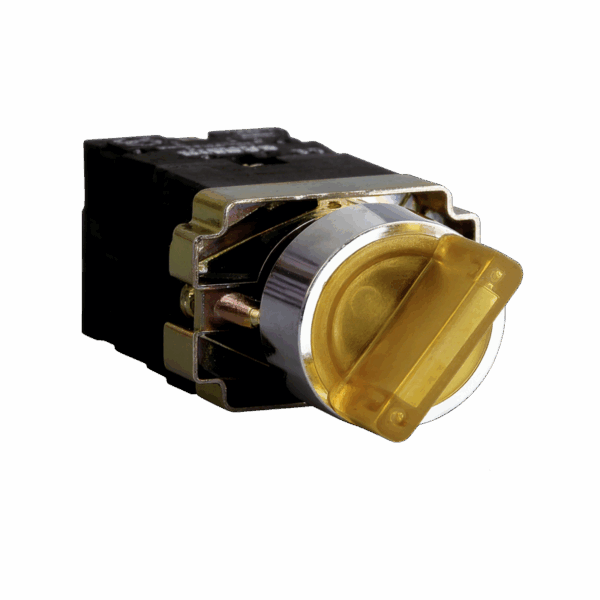

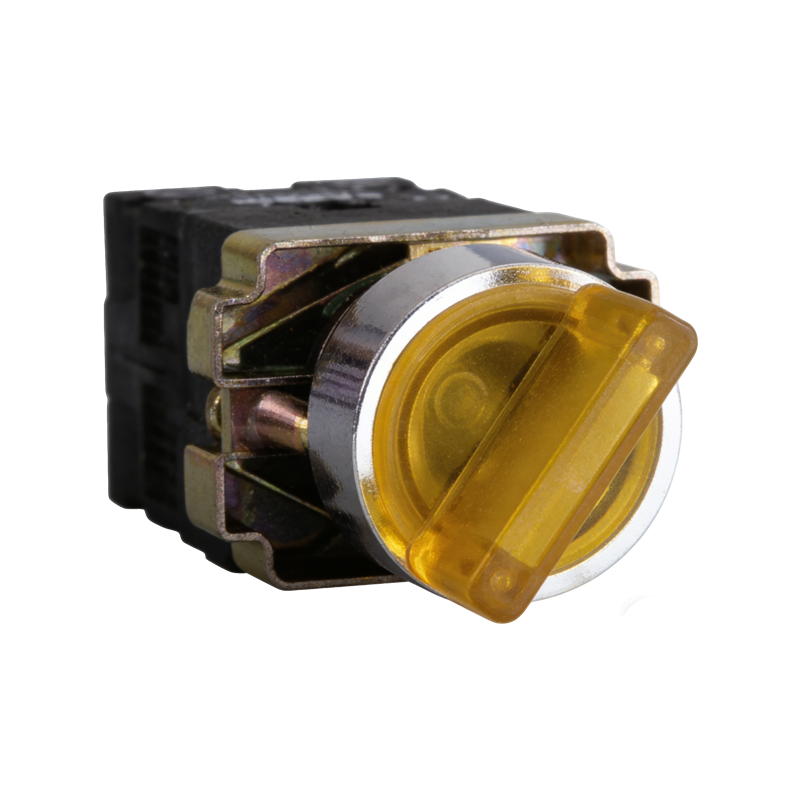

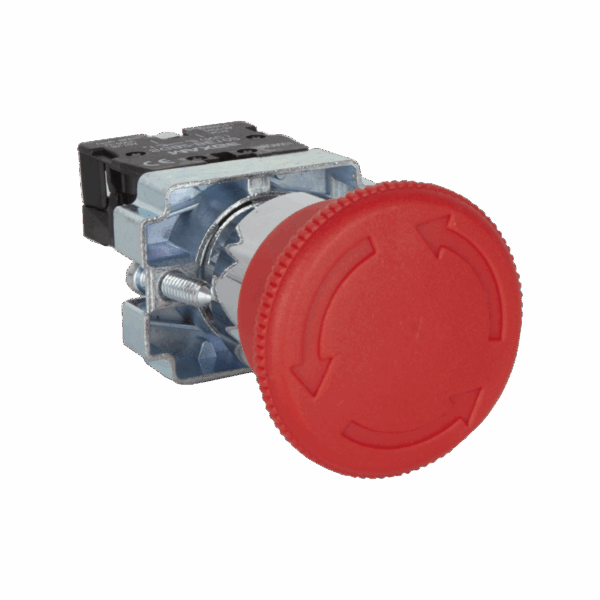

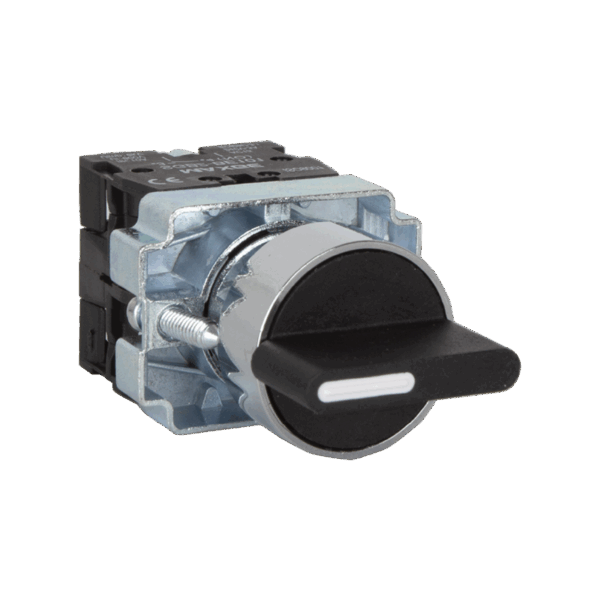

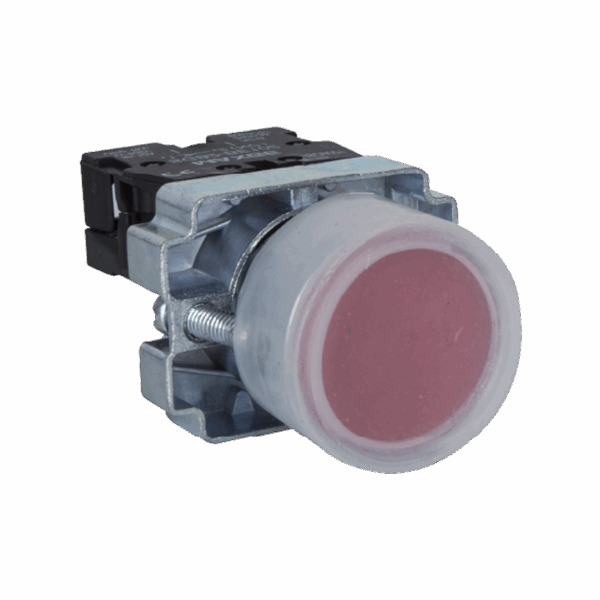

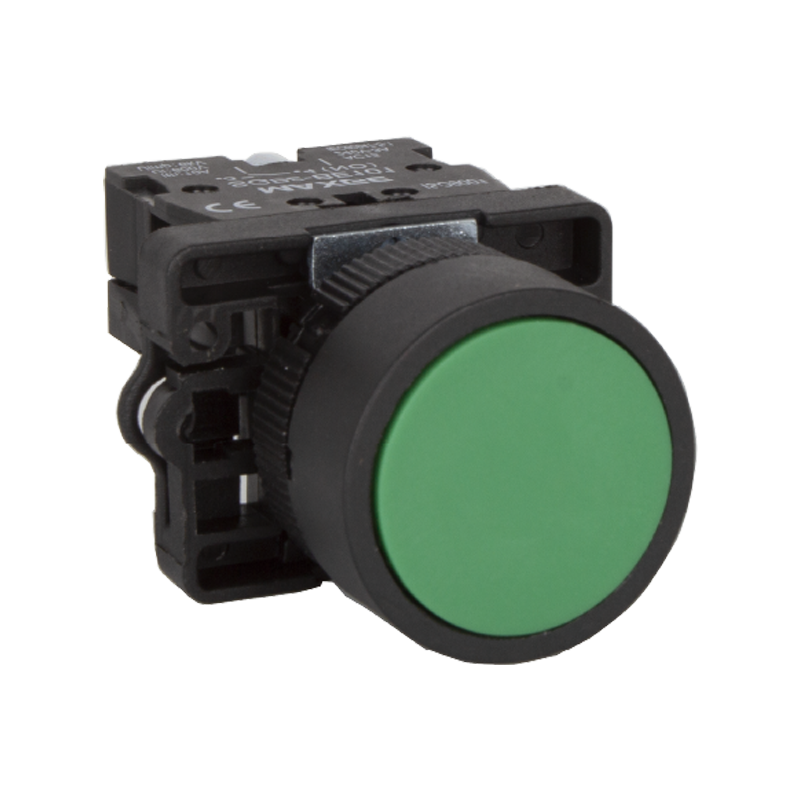

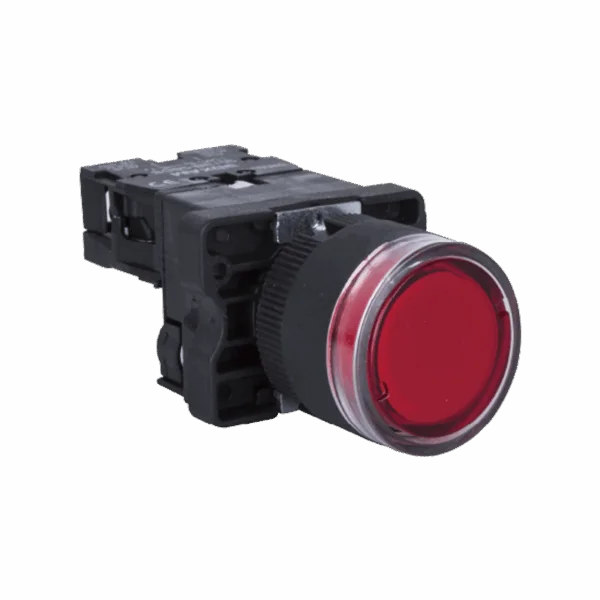

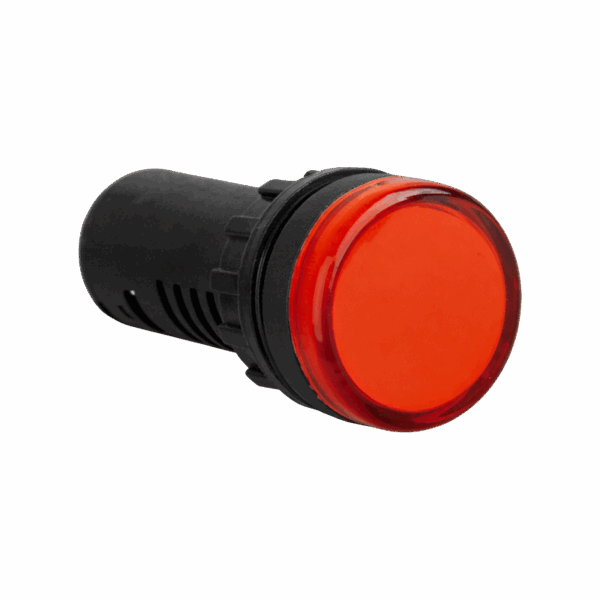

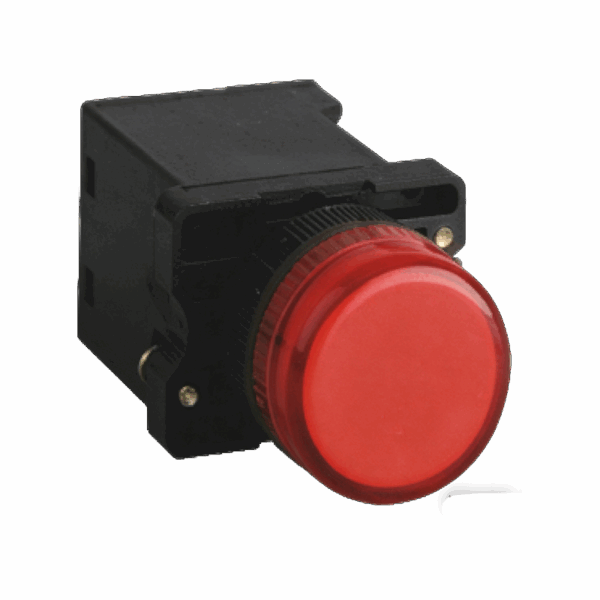

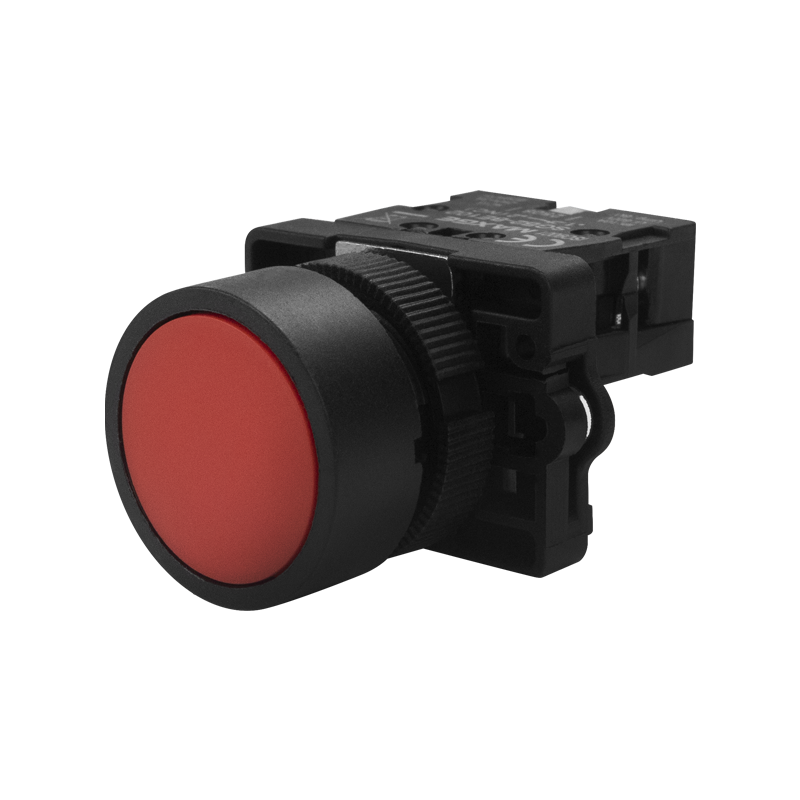

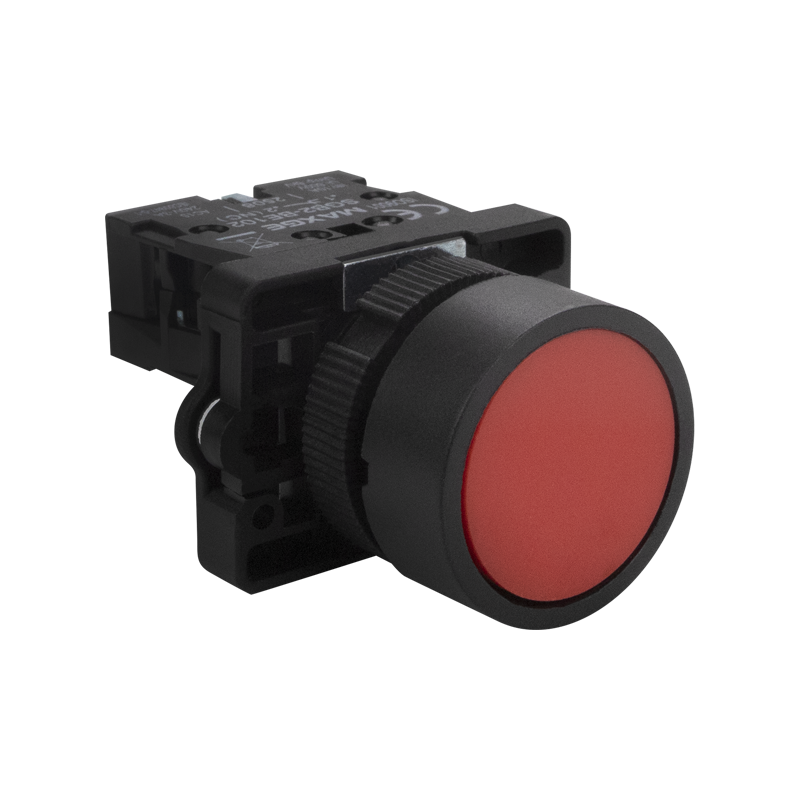

SGB2 series covers a full range of control elements for industrial panel operation, including standard spring return pushbuttons, red mushroom emergency stop buttons and multi-position selector switches with diverse contact combinations. LED signal indicators come in red, yellow, green and blue with two mainstream voltage specifications to clearly display equipment running status.

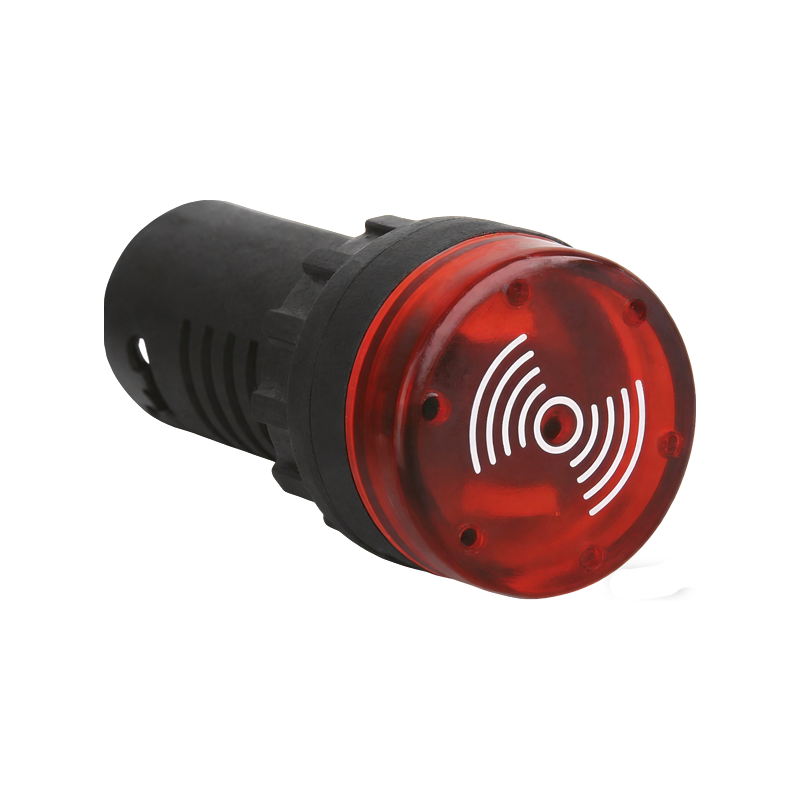

The series is equipped with dedicated supporting accessories such as mounting frames of different sizes, auxiliary contacts and alarm contacts for fault signal output. It supports multiple wire gauges and meets standard operating force requirements, with stable mechanical durability and wide applicable ambient humidity range. All products adopt unified installation aperture design, easy to assemble on control panels, widely used in machine tools, pumping stations and general industrial automation control systems.

Product Parameter
