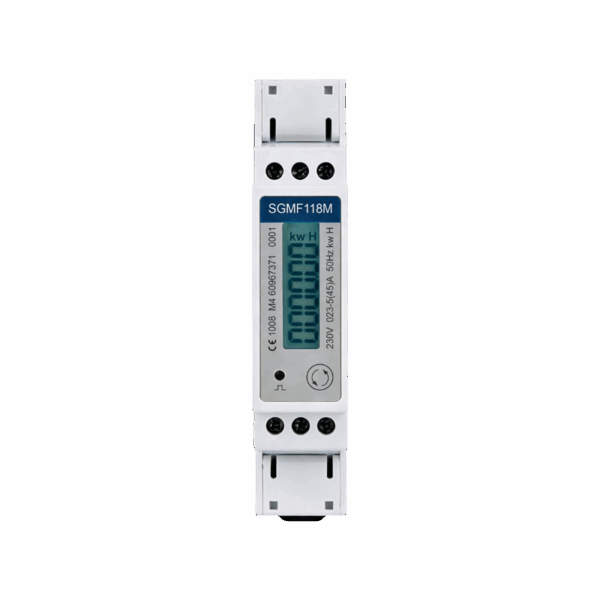

SGMF118M

Multifunction Meters, precise DIN rail-mounted power monitoring devices, collect, display and record comprehensive electrical parameters to realize energy statistics, power monitoring and data transmission for low-voltage distribution systems.

IEC 62052-11 compliant, CE certified.
Single-phase 230VAC, 176–276V range, direct 0.25–5(45)A.
wire range 0.5–10mm².
Pulse constant: 1000imp/kWh.

Product
Description

This full SGMF multifunction meter series adopts standard DIN rail mounting for cabinet installation. It supports both direct wiring and 75mV transformer secondary connection to fit various load conditions, with a large cumulative kWh range to meet long-term energy measurement needs.

Fitted with a built-in RS485 interface, the meters realize real-time remote data acquisition for smart power management systems. Boasting 6kV impulse voltage resistance and E2 environmental adaptability, they maintain precise, stable metering performance even in high-humidity industrial settings. CE-certified with a standardized modular design, they are widely applied in factory distribution cabinets, commercial power panels and smart building power monitoring systems.
