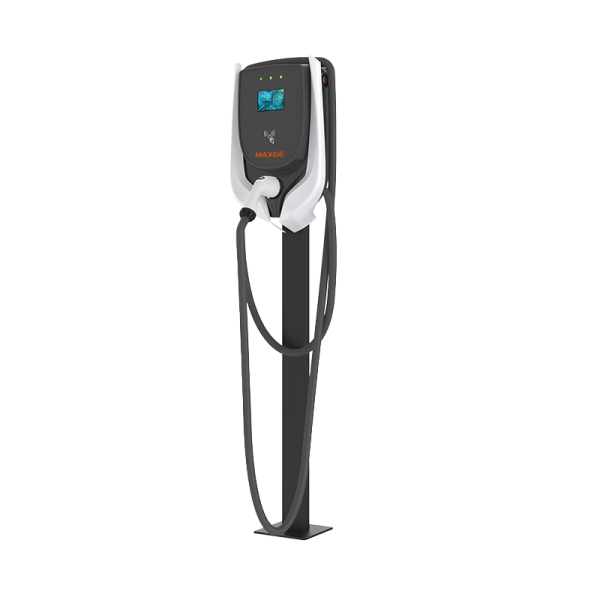

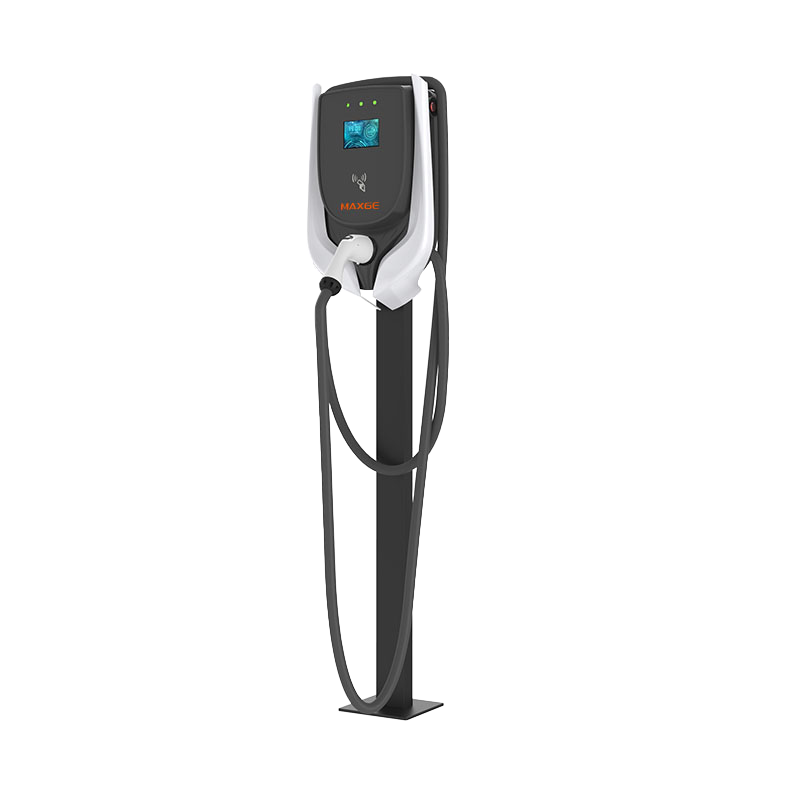

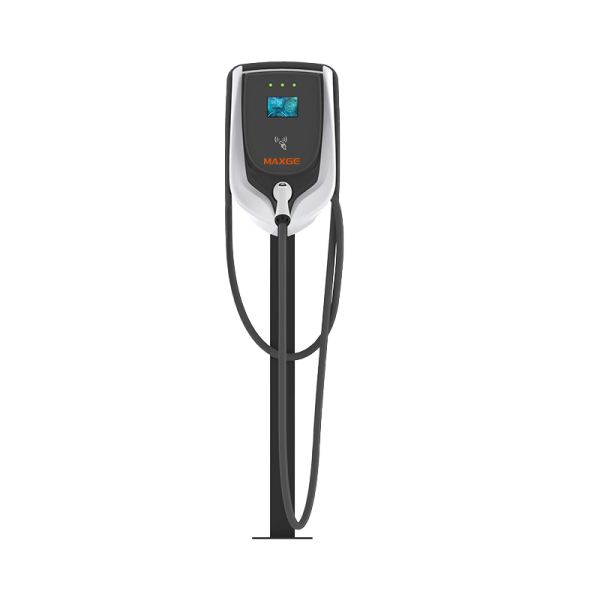

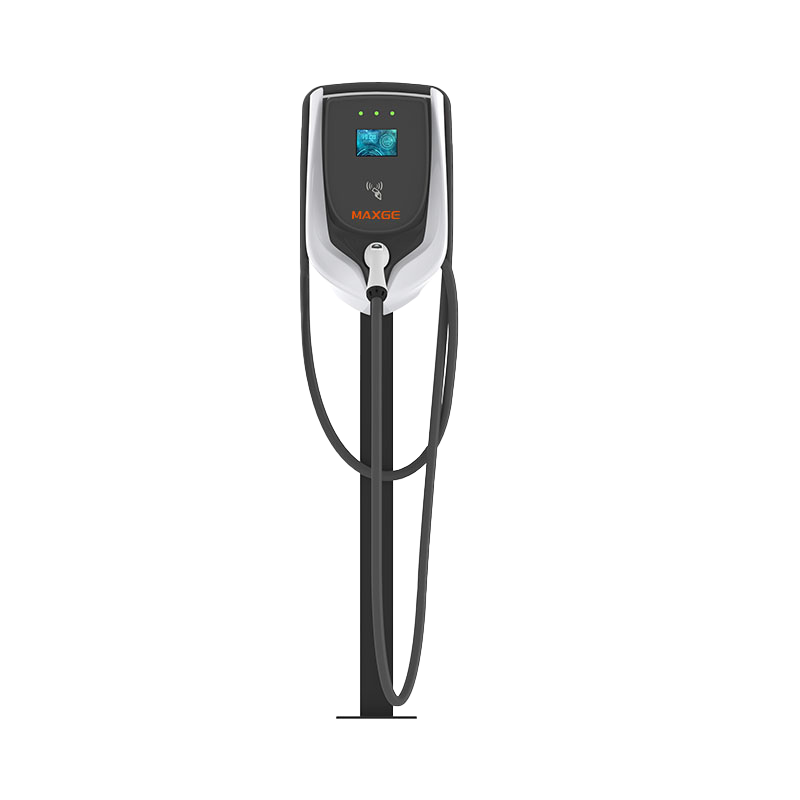

MG5-AC-7kW

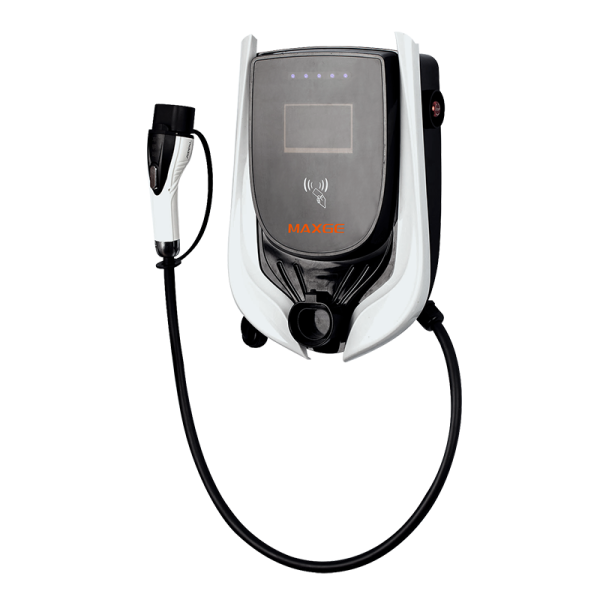

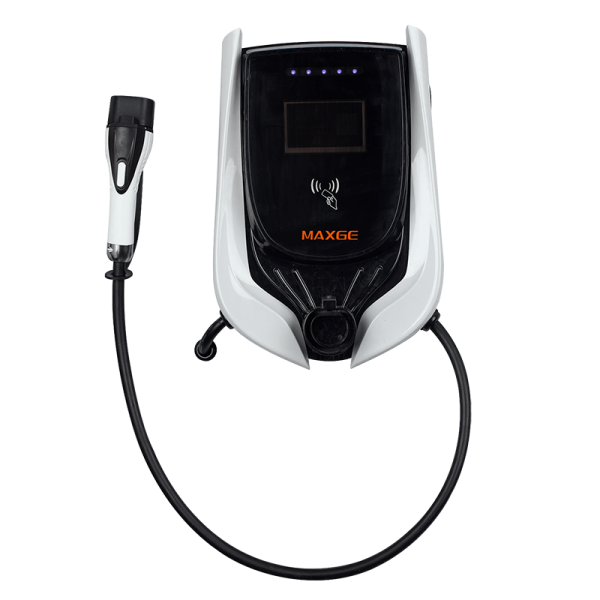

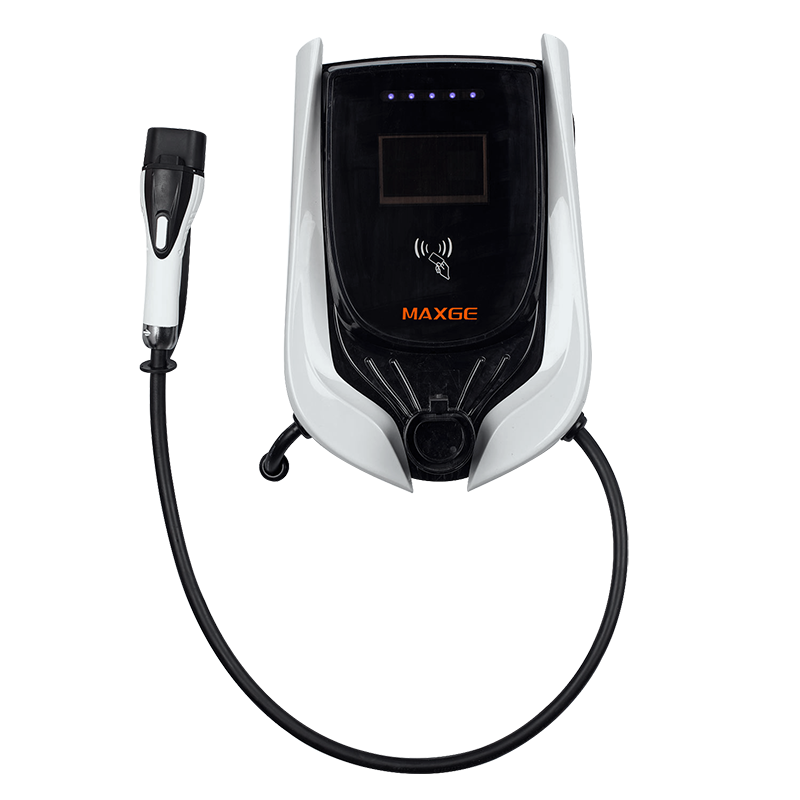

Wall-mounted AC charging stations feature a user-friendly, space-saving design for easy wall installation, freeing up floor space. Their impact-resistant shells ensure durability against wear and weather. The display supports card swiping and code scanning, simplifying use. With multi-networking, they enable remote management. Safety is ensured via multi-protection, active battery monitoring, and stable constant power output. They support online/offline charging, ideal for public lots, residential areas, and transportation hubs, reliably serving diverse needs.

  • Impact-resistant Shell
  • User Interface:4.3 inch highlight display
  • Networking Mode:2G, 4G, wifi
  • Charging cable length: standard 3.5 meters (optional)
  • Charging method:Swipe card, Scan code
  • Status Indicator

Product
Description

MG5 – AC – 7kW AC Charging Station delivers 7kW output, compatible with 220Vac±20% voltage, 50Hz±10% frequency, and 32A rated current for stable charging. Equipped with a 4.3 – inch highlight display, it supports card – swiping, code – scanning, and 2G/4G/WiFi networking, enabling offline/online billing. With overvoltage, undervoltage protections, compliant with IEC 62196, it offers an optional 5m cable, IP54 protection, and wall/floor – mounted installation, it ensures reliable charging for commercial use.

To ensure long-term stable operation, systematic periodic maintenance is required: daily clean the casing, remove dust and foreign objects, check displays, charging interfaces and cables for intactness, looseness or damage, and monitor core parameters like voltage and current in real time via the operation system; quarterly focus on verifying protection functions (overvoltage, undervoltage, etc.), test networking module communication stability, and simulate full-process charging to detect hidden issues; annually calibrate metering modules as specified, tighten internal terminals, and replace worn parts such as aging seals and cables. Standardized maintenance ensures safe and reliable operation in various scenarios.

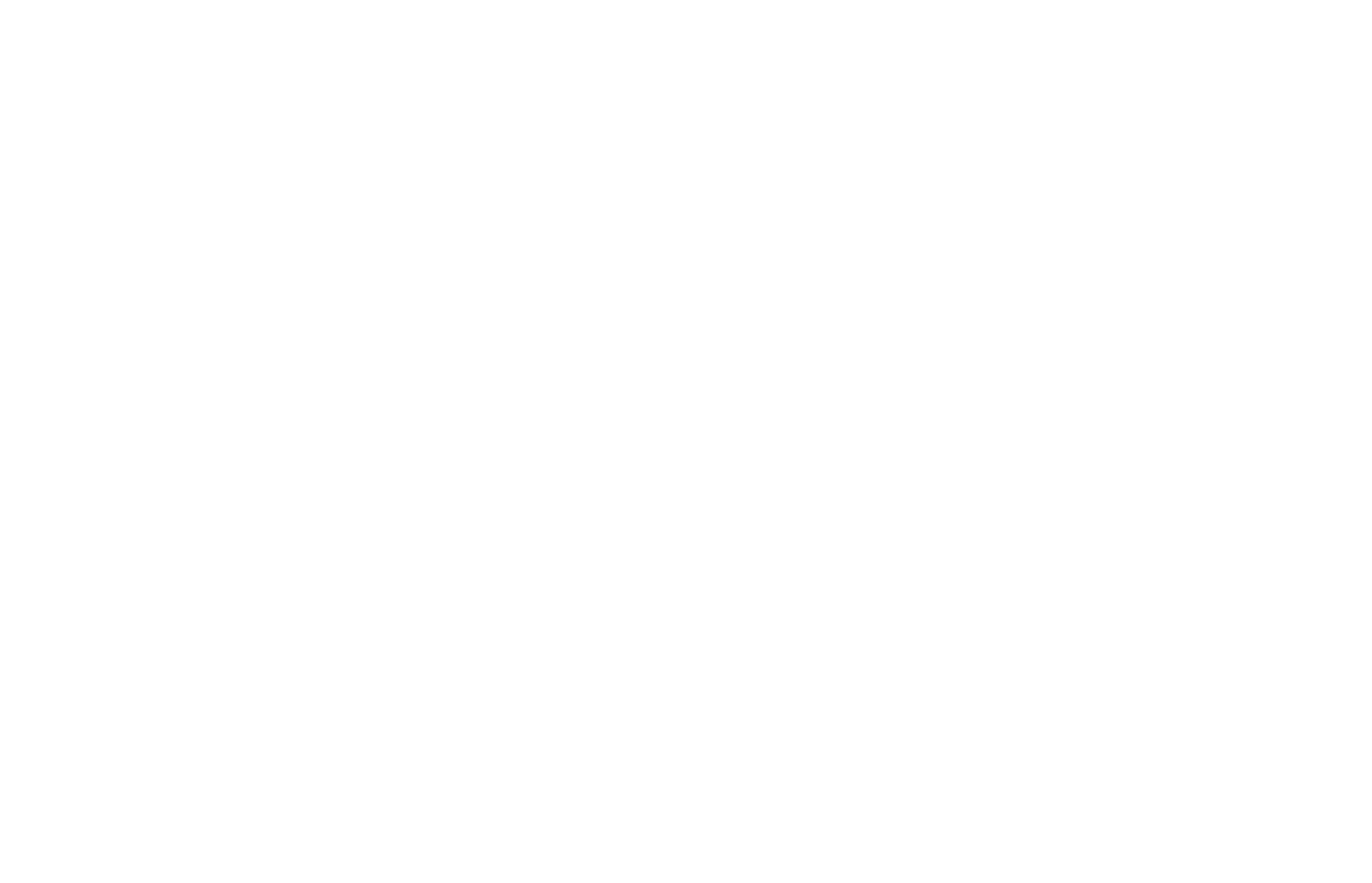

Product Parameter
