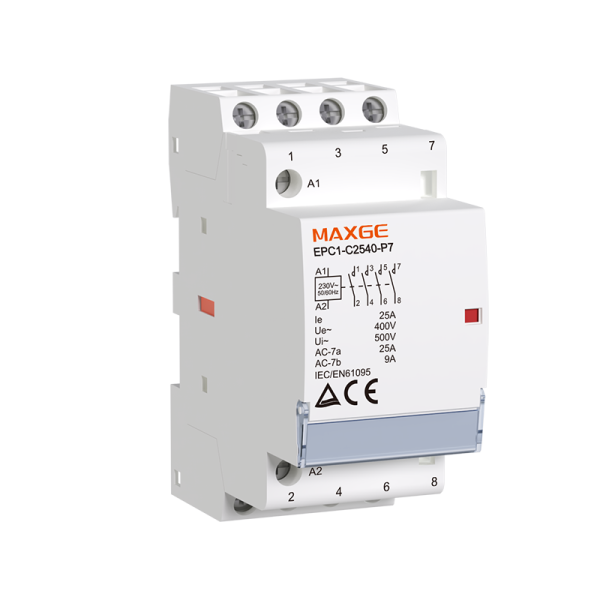

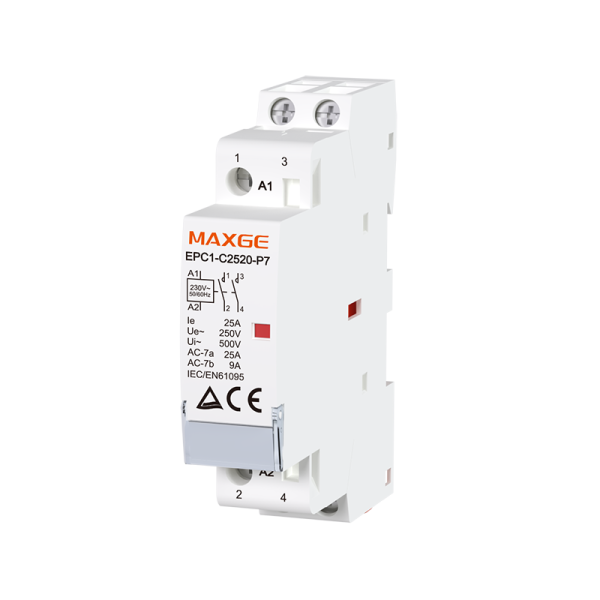

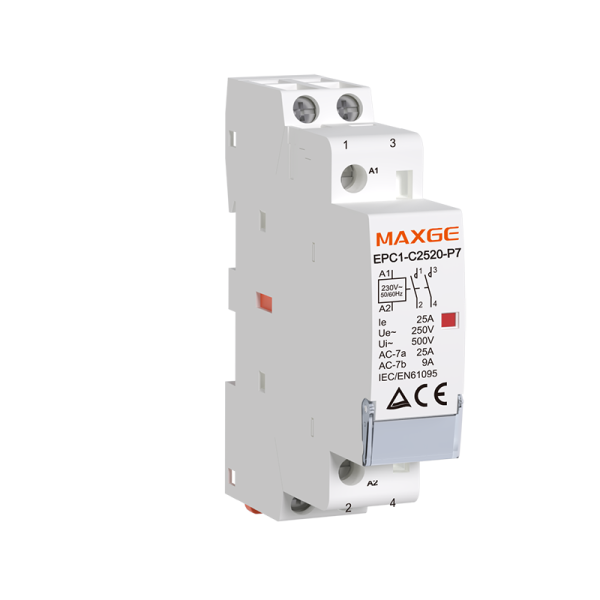

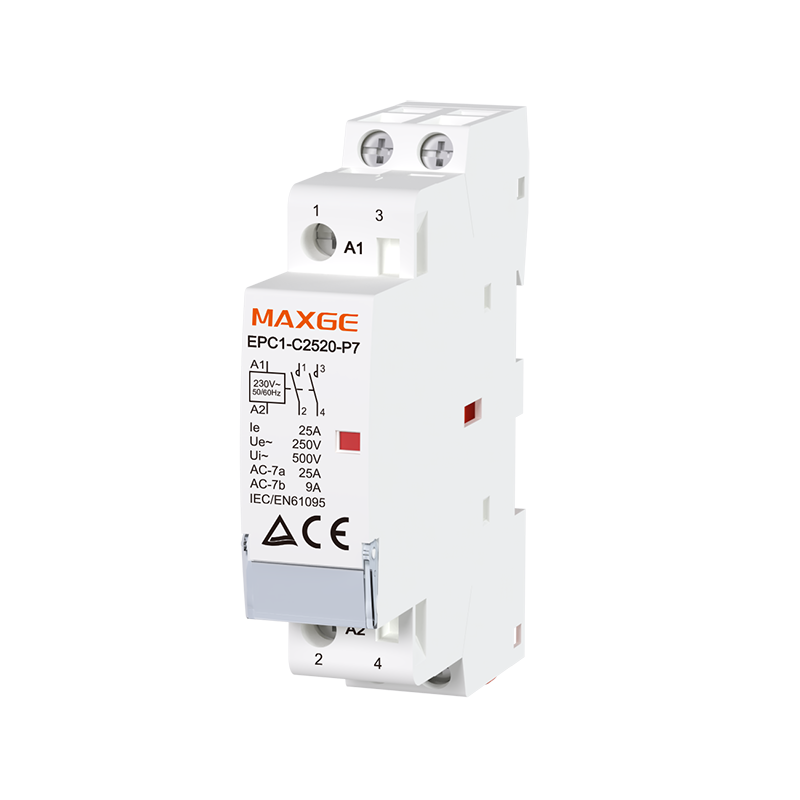

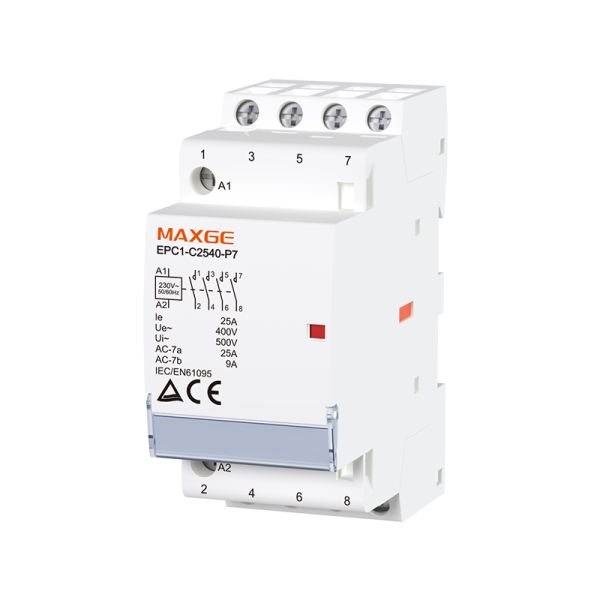

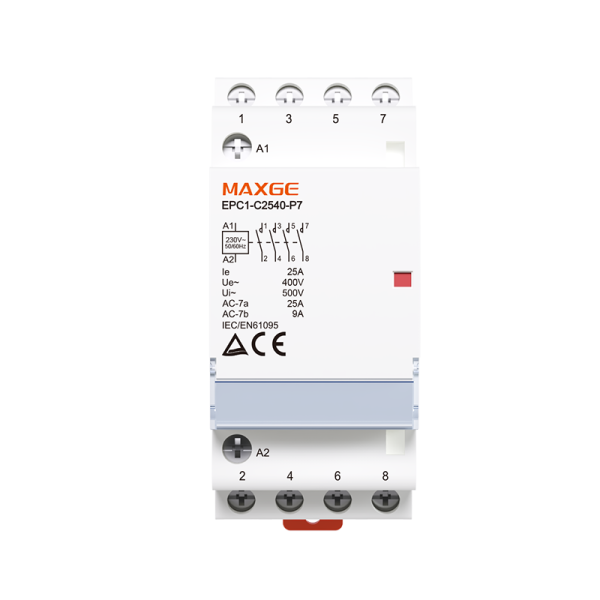

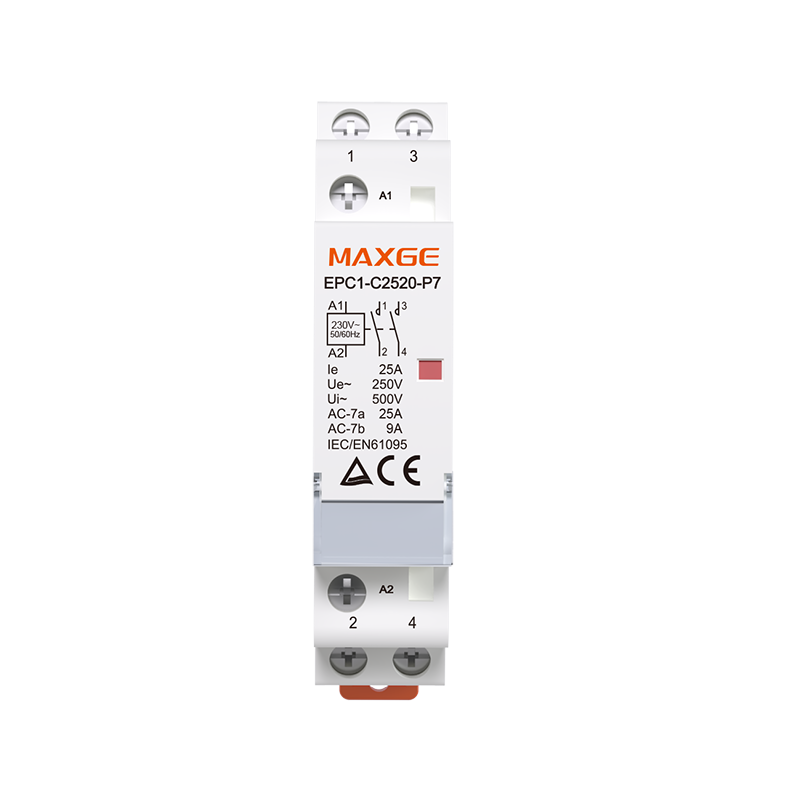

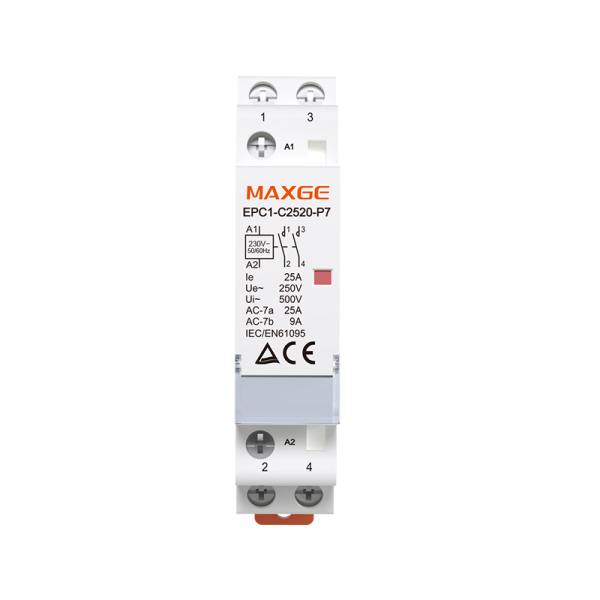

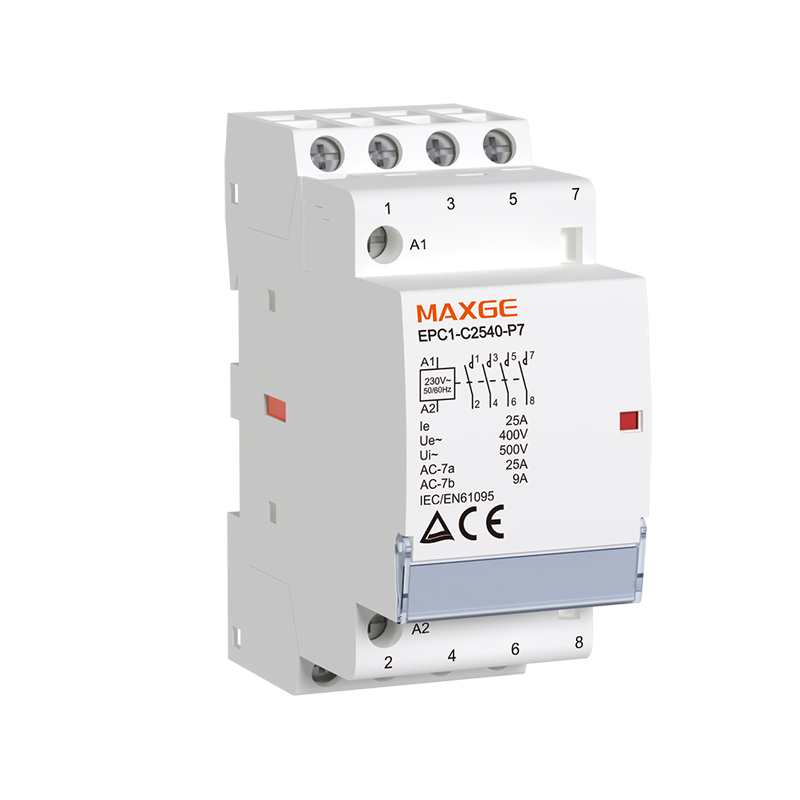

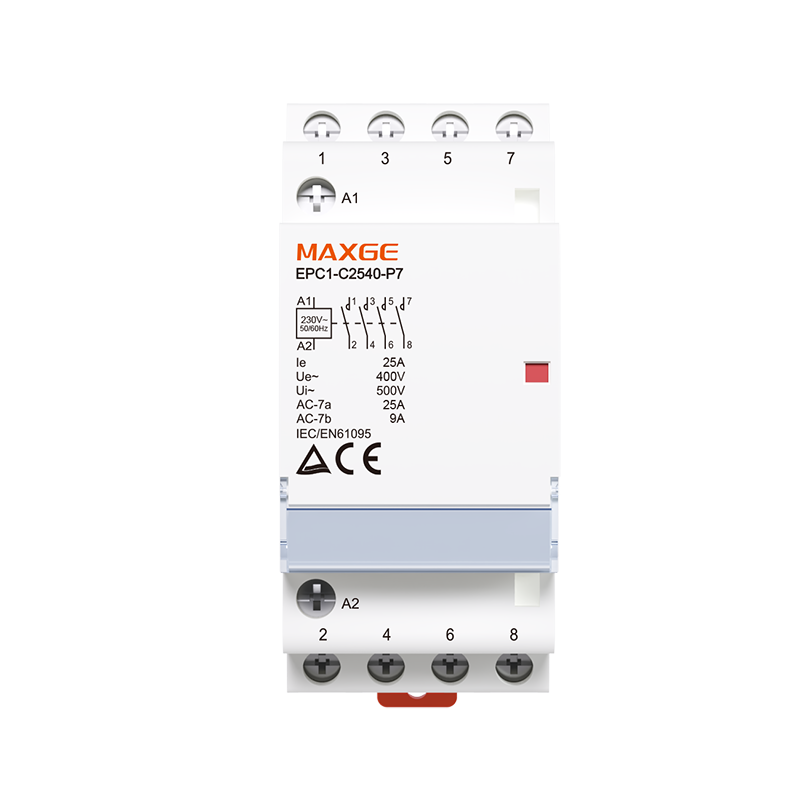

EPC1-25A

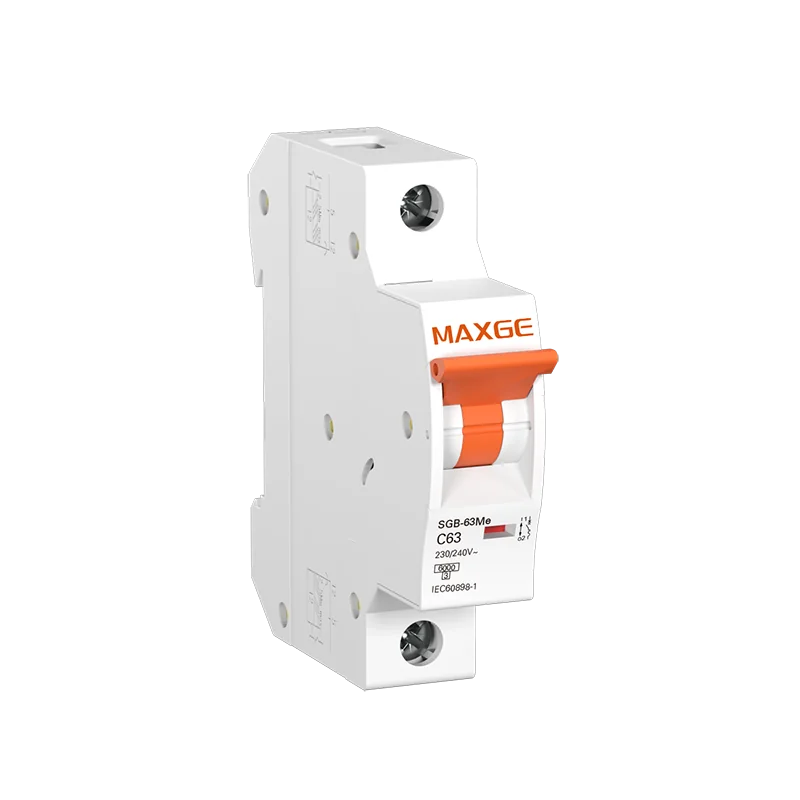

The Alpha+ series of miniature circuit breakers is a star product series of MAXGE that has been tested in the market for 15 years. This product features an optimized structure for compatibility with other contactors, offers abundant auxiliary function modules for flexible combinations, and provides secure terminal connections with a tightening torque up to 3.5 N.m to prevent tripping.

Neat Appearance
Visualization Window
Flame Retardant Material & Thermoset Shell
Clear Parameters

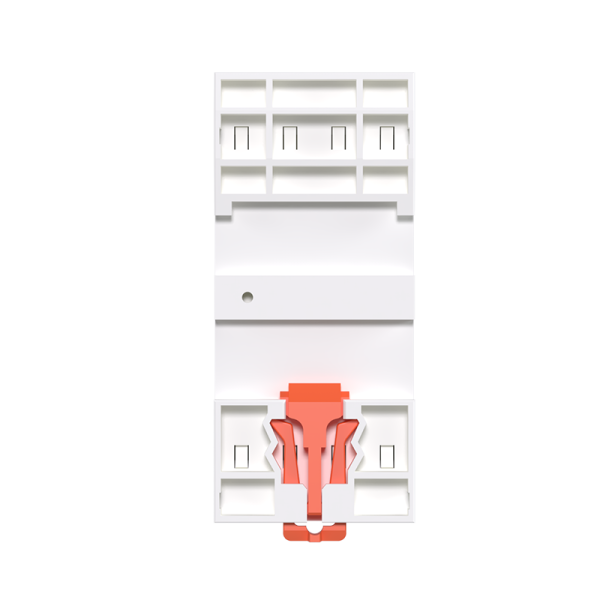

Stable Installation

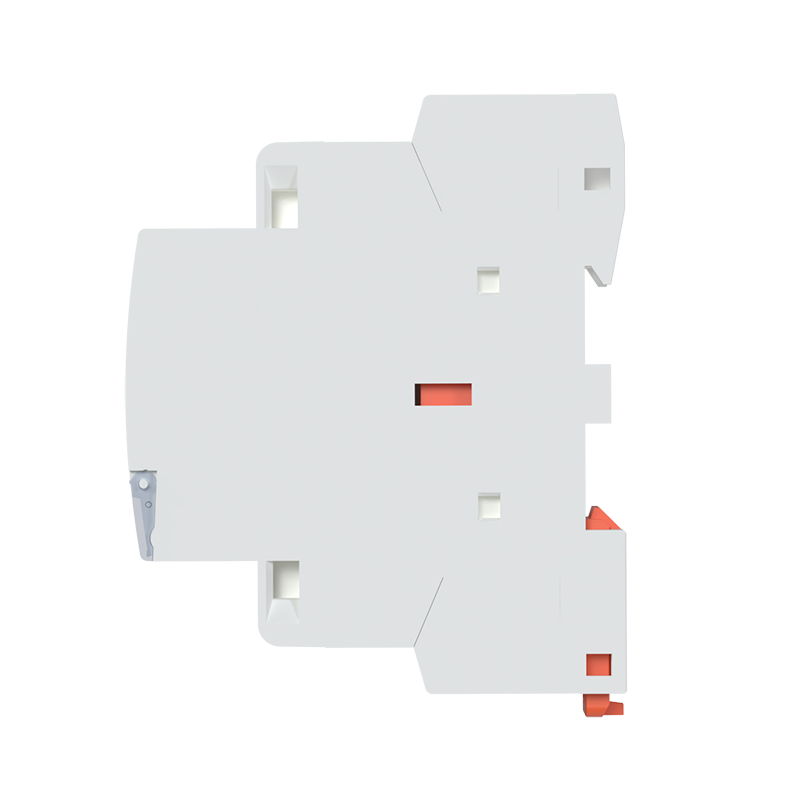

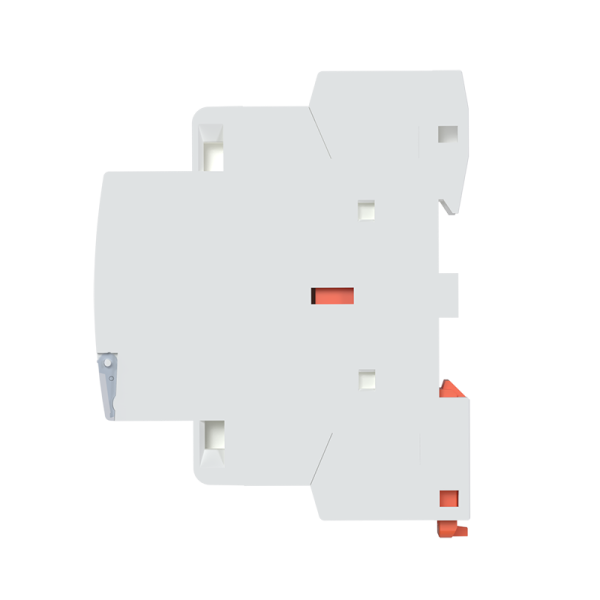

Accessories can be added on the side

Product
Description

Mainly used for AC 50Hz or 60Hz. Under the use category of AC-7a and the rated working voltage of 250V/400V, the rated working current is 10A～63A. Mainly used in the construction industry to switch on and control lights, heating, ventilation and water pumps.

The circuit breaker should be checked regularly during operation. After the circuit breaker breaks the short-circuit current, the fault should be eliminated first. When the circuit breaker is restored to open and close the circuit, the load should be disconnected first, and then the circuit breaker should be closed/opened: The circuit breaker should select the appropriate current specification, tripping type and copper wire cross-sectional area according to the load power.
