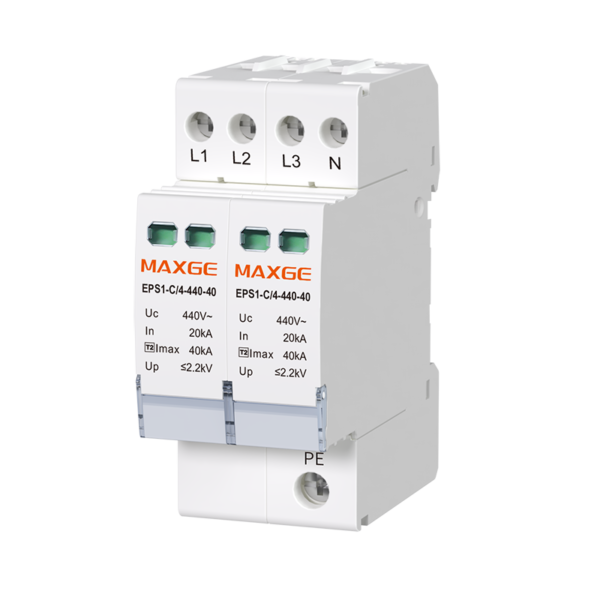

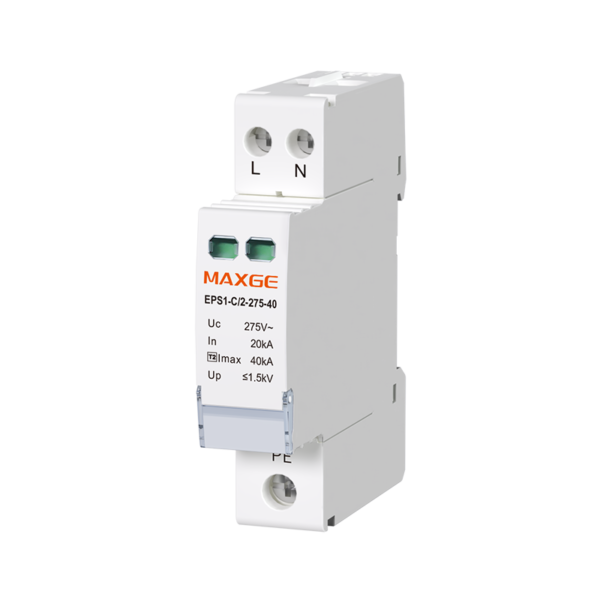

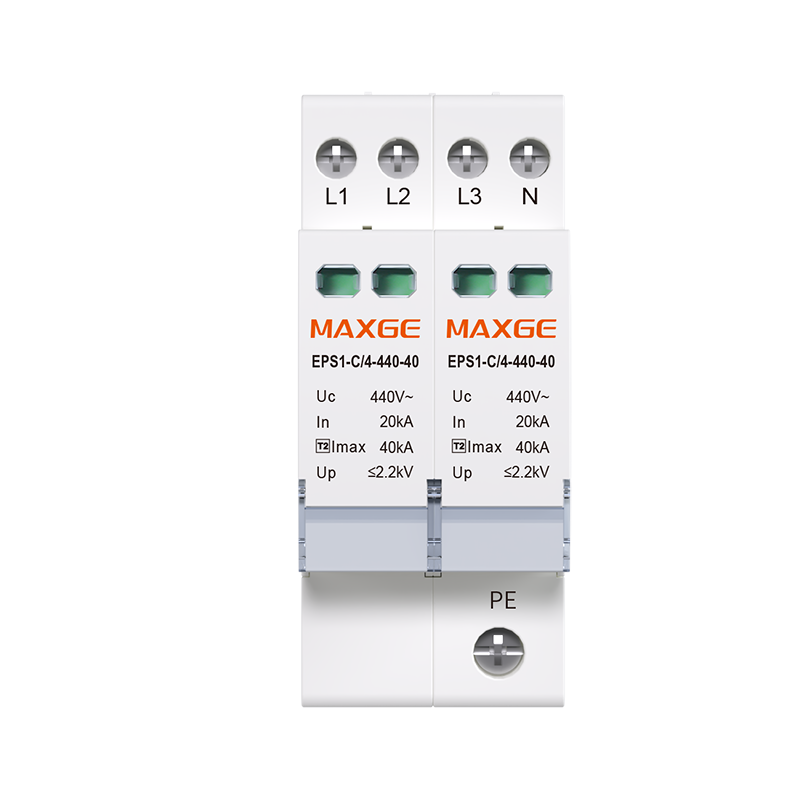

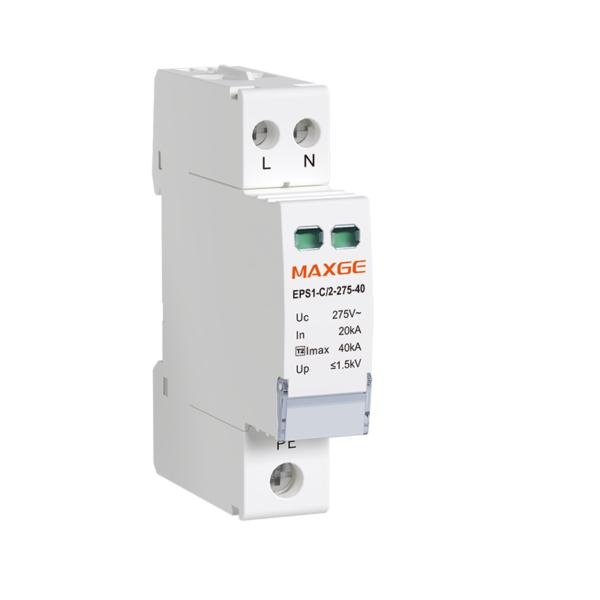

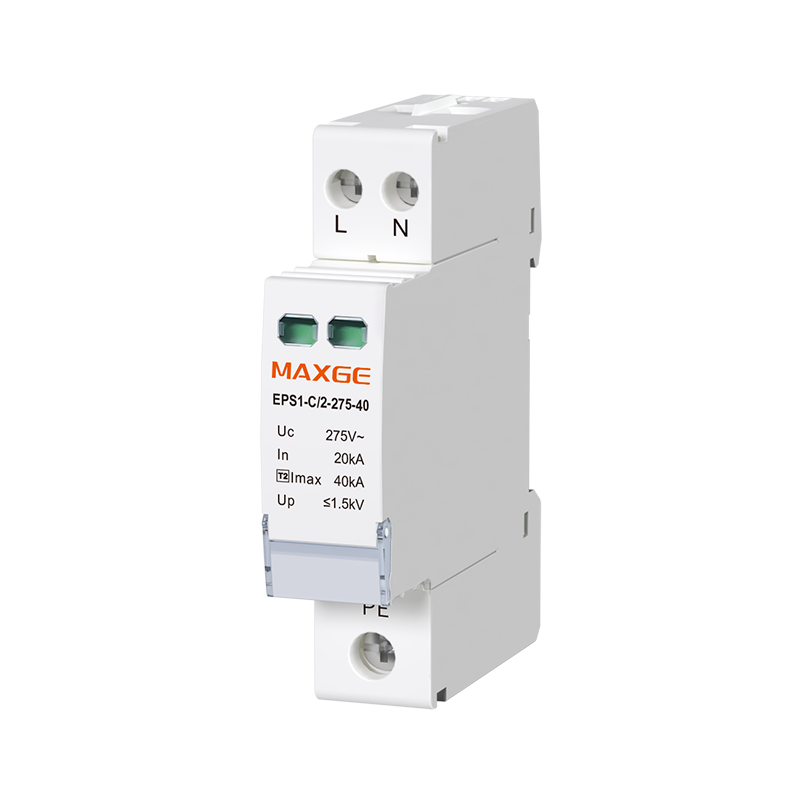

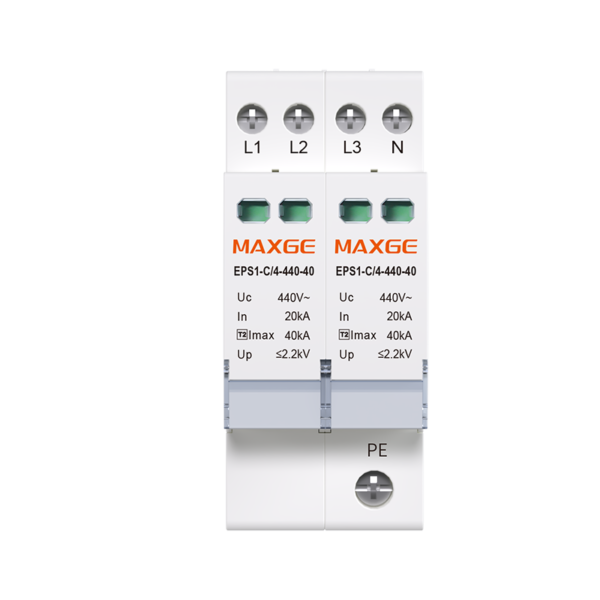

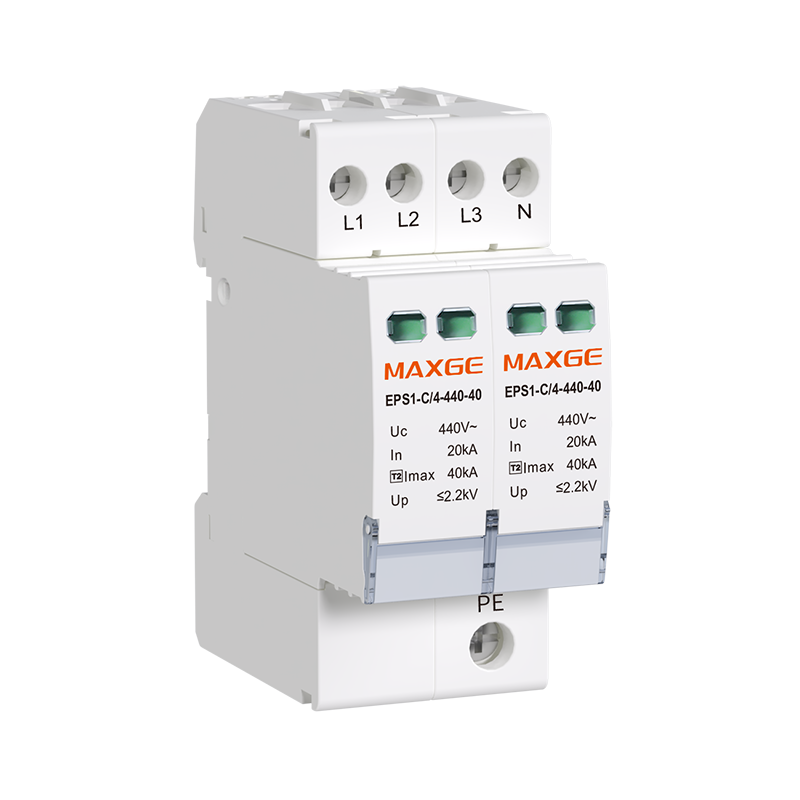

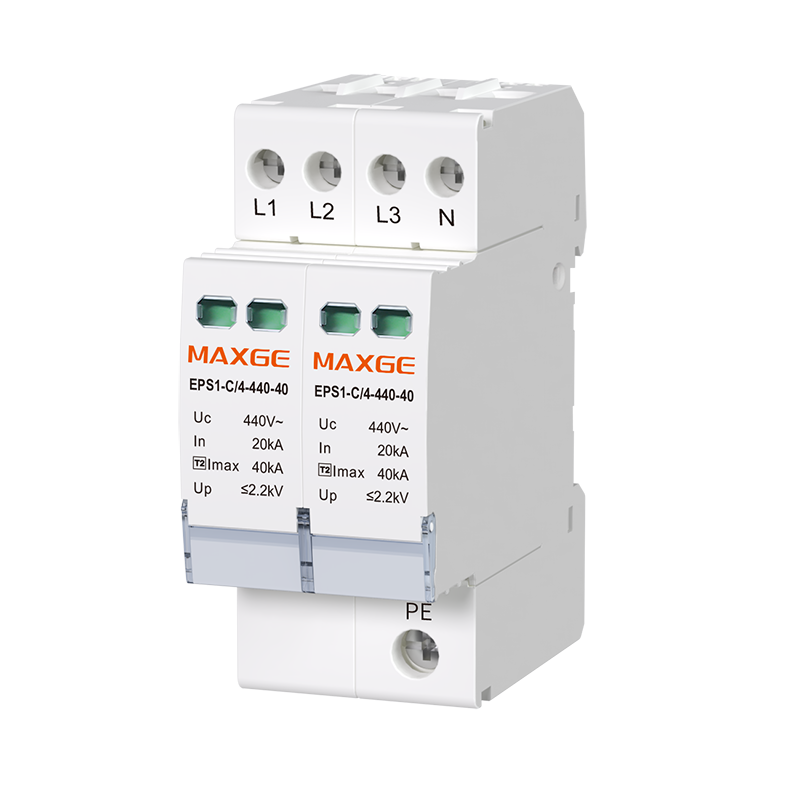

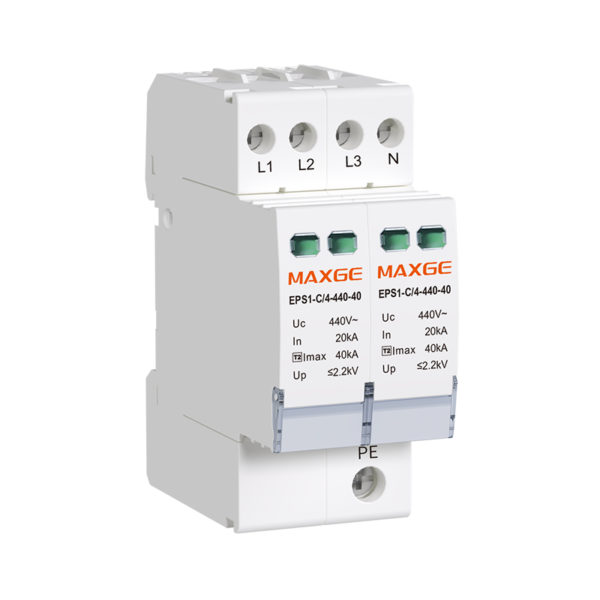

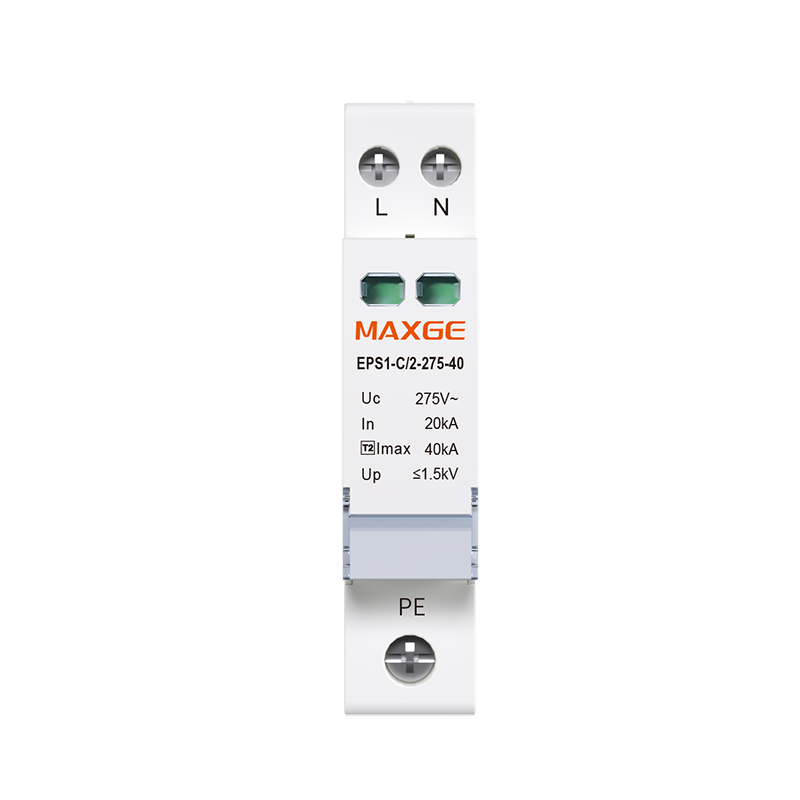

EPS1 SPD

MAXGE EPS1 Series surge protective device is a professional SPD for power distribution safety, designed and manufactured in strict accordance with IEC 61643-11 standard. It provides reliable protection for power supply systems and on-load electrical equipment against lightning surges and instantaneous overvoltage, widely used in commercial buildings, residential quarters, industrial power distribution and other scenarios.

Compact Modular Design

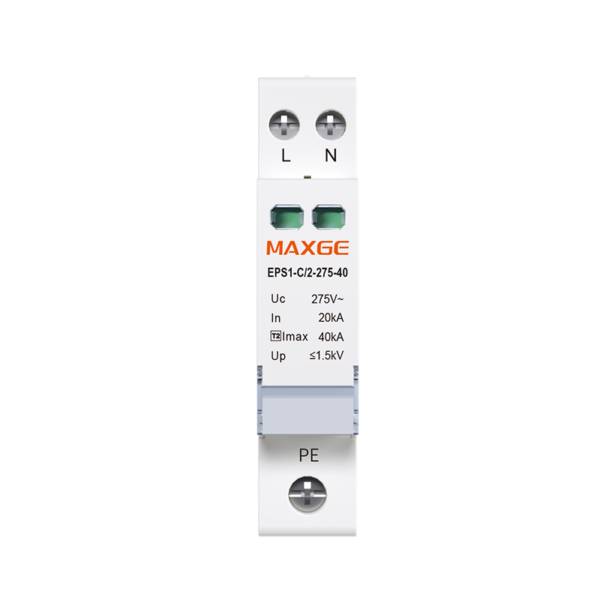

Visual On-Off Indication Window
High Flame-Retardant Housing

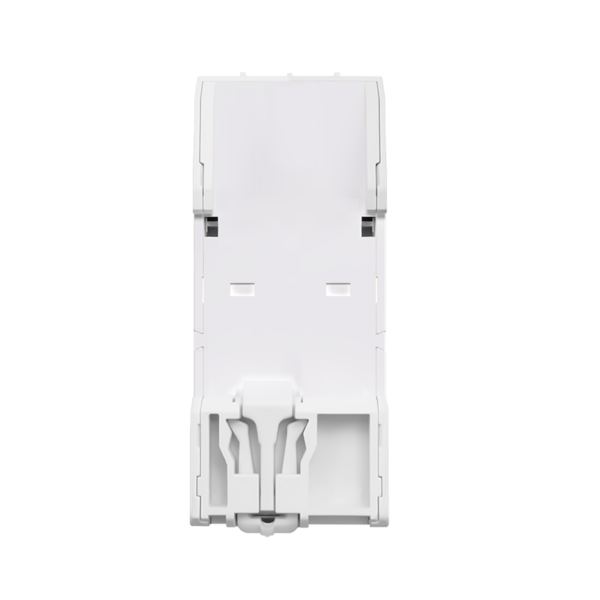

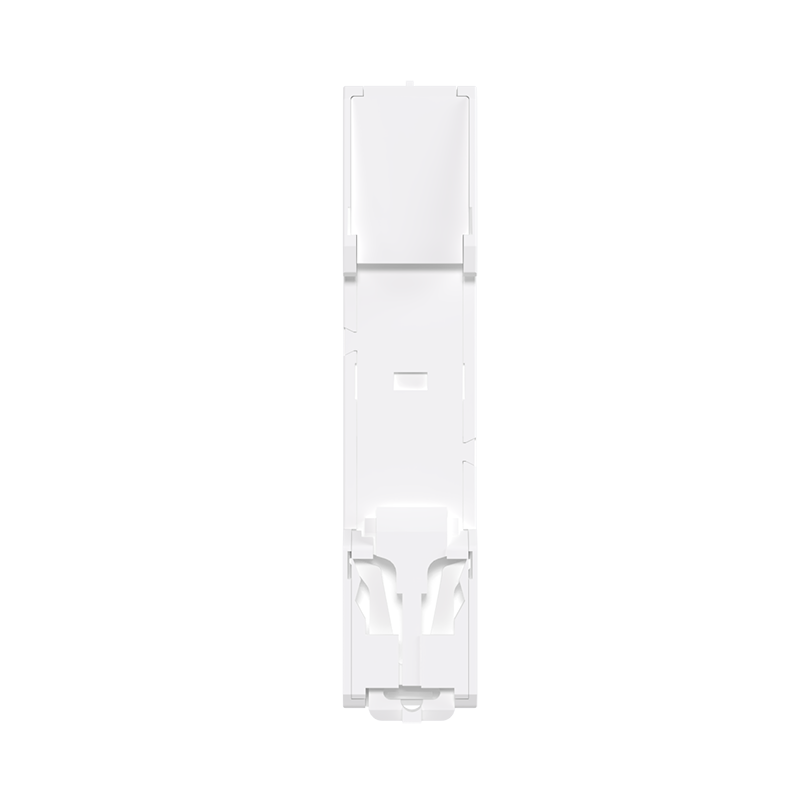

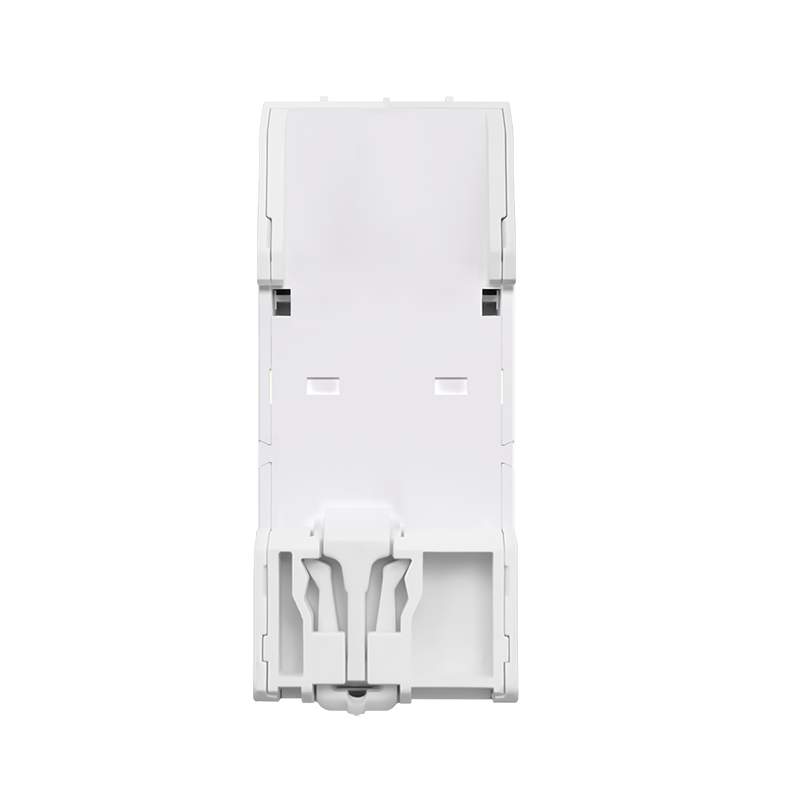

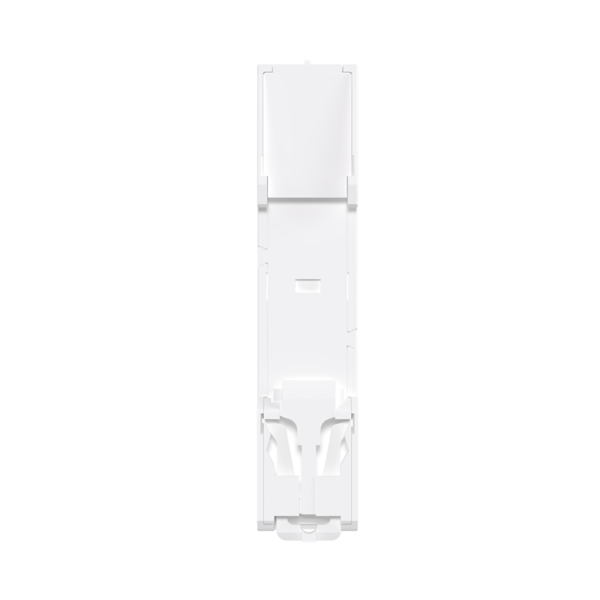

Stable DIN-Rail Installation
Pin Type Termination
Fast Response & Low Protection Level

Product
Description

EPS1 Series surge protective device is mainly used in AC power distribution systems, effectively clamping transient overvoltage and discharging surge current to the grounding system, so as to avoid damage to electrical equipment and lines caused by lightning induction or switching surges. It adopts mature MOV core components, with nominal discharge current In 20kA and maximum discharge current Imax up to 40kA, response time as fast as 25ns, and protection level Up as low as ≤1.5kV, to achieve high-efficiency surge suppression.

The surge protective device shall be inspected regularly during operation. Pay attention to the color of the status window: green means normal, and red means failure and needs to be replaced immediately. When installing or replacing, please disconnect the power supply first, and use cables with cross-sectional area ≥10mm² for connection. Select the appropriate model (Uc 275/320/385V) according to the system voltage and grounding type to ensure the best protection effect.
