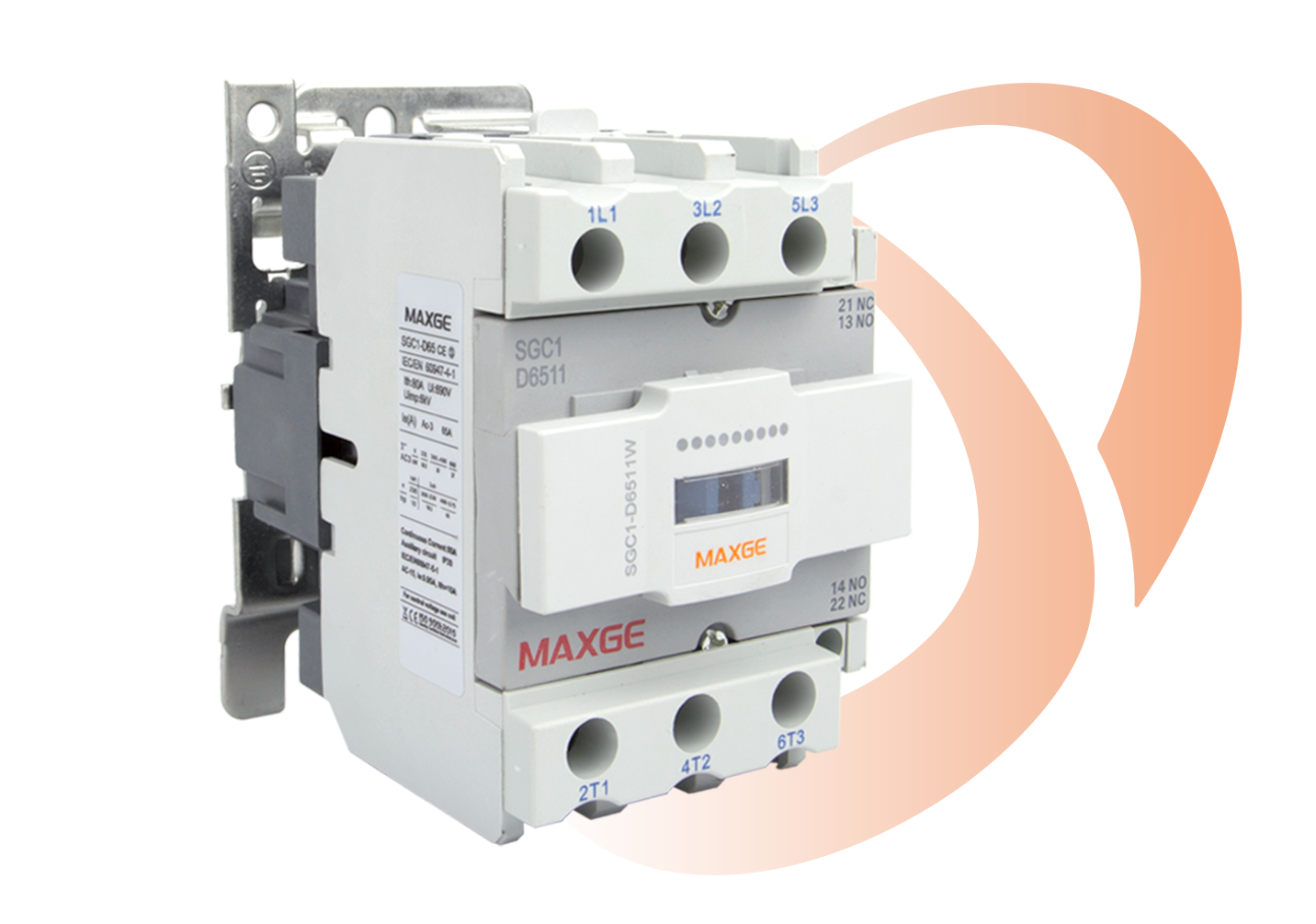

SGC1-D-65 Series AC Contactor
SGC1-D-65 Series AC Contactor
SGC1-D-65 Series AC Contactor
SGC1-D-65 Series AC Contactor
SGC1-D-65 Series AC Contactor
SGC1-D-65 Series AC Contactor
SGC1-D-65 Series AC Contactor
SGC1-D-65 Series AC Contactor
SGC1-D-65 Series AC Contactor
SGC1-D-65 Series AC Contactor
SGC1-D-65 Series AC Contactor

SGC1-D-65 Series AC Contactor

Mainly used for AC 50Hz or 60Hz, rated operating voltage up to 690V, in circuits with rated operating current up to 95A under AC-3 usage category,used to control AC motors. It can be combined with appropriate thermal overload relays to protect circuits where operational overloads may occur.
Inquiry

Brief Specification



Standard：IEC60947-4-1

Electric ratings：Up to 95A,690V

Operation range    Pick-up voltage：(85%~110%) Uc

                              Drop-out voltage：(20%~75%) Uc

Rated insulation voltage Ui(V)：690

Rated impluse withstand voltage Uimp(kV)：6

Utilization category：AC-3,AC-4









Features & Benefits...

The structure is optimized and compatible with other industrial contacts.



Material optimization, with excellent ability to withstand abnormal heat.


Auxiliary function modules are abundant and can be combined at will.


Competent for harsh application environment, more durable.















Details...

  • Accessories can be added to the front and side.
  • Side-mounted interface
  • IP20 shell

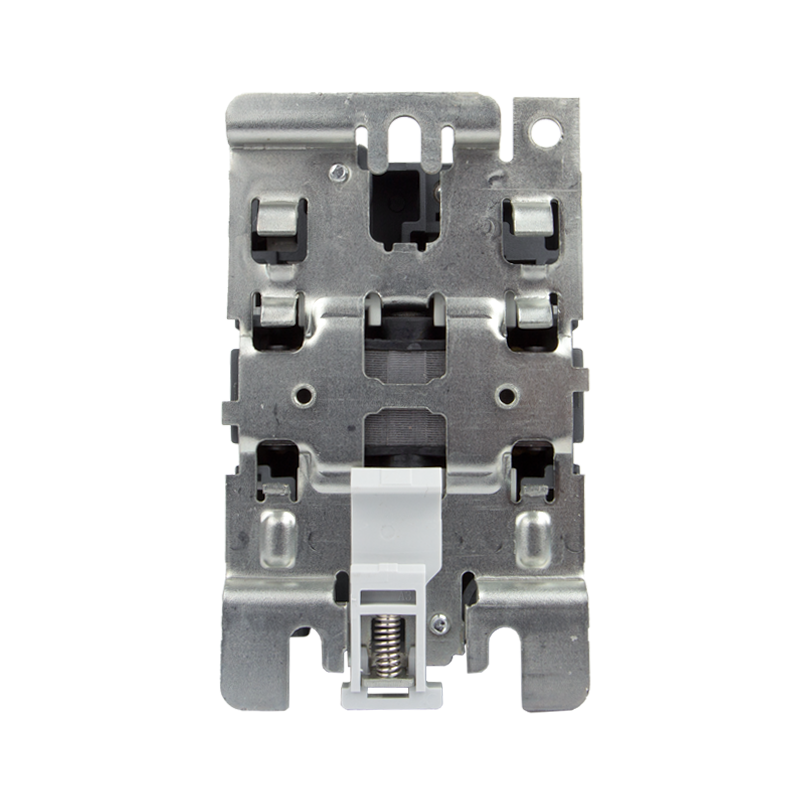

  • Standard 35mm DIN rail mounting
  • Highly Recognizable Appearance

  • Thermoset Insulation Shell



Product Inquiry

Operation
Remove
Submit
%{tishi_zhanwei}%

SGC1-D Please refer to our latest catalog for full series information.
