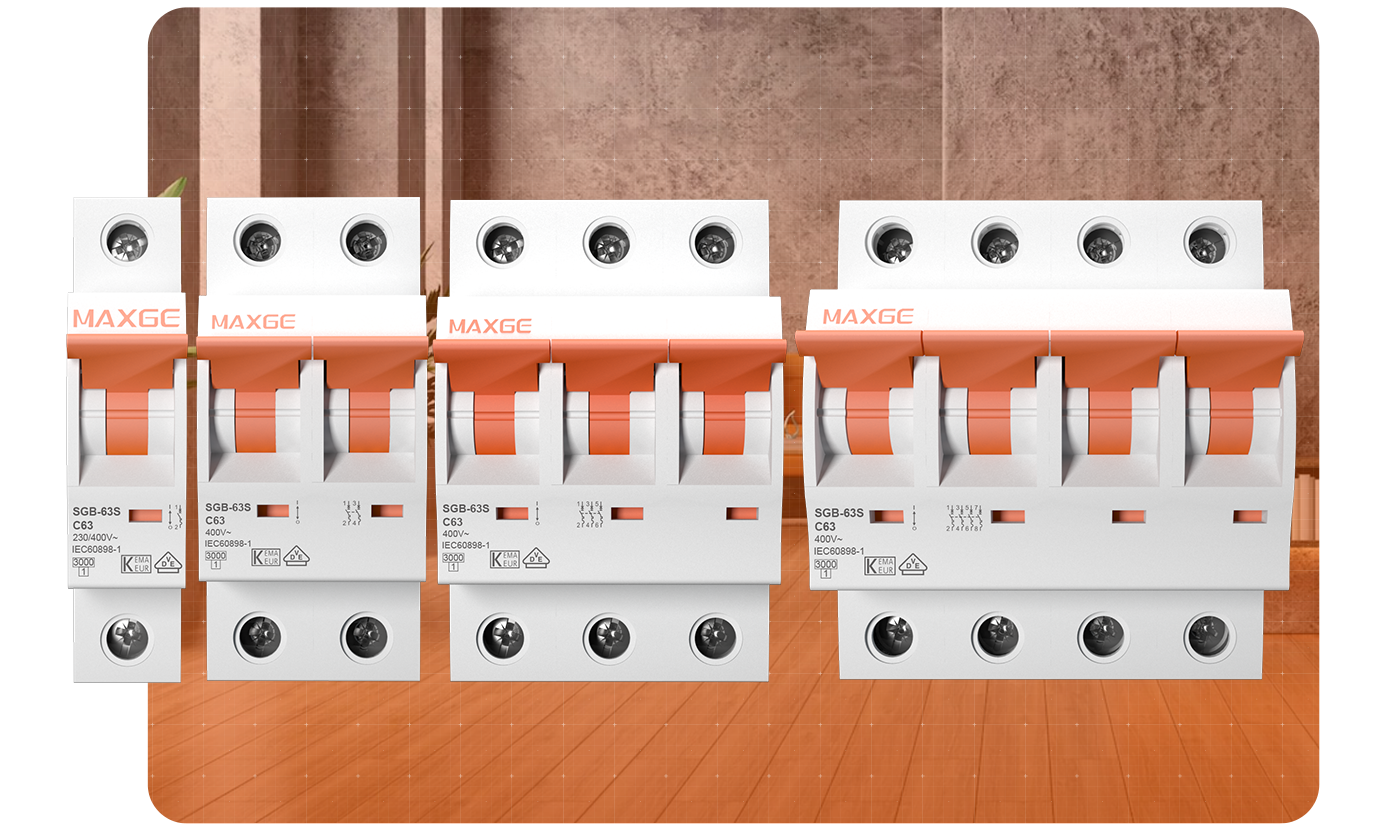

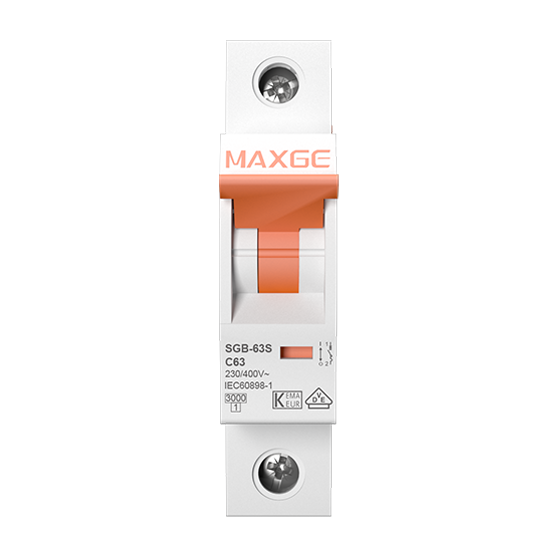

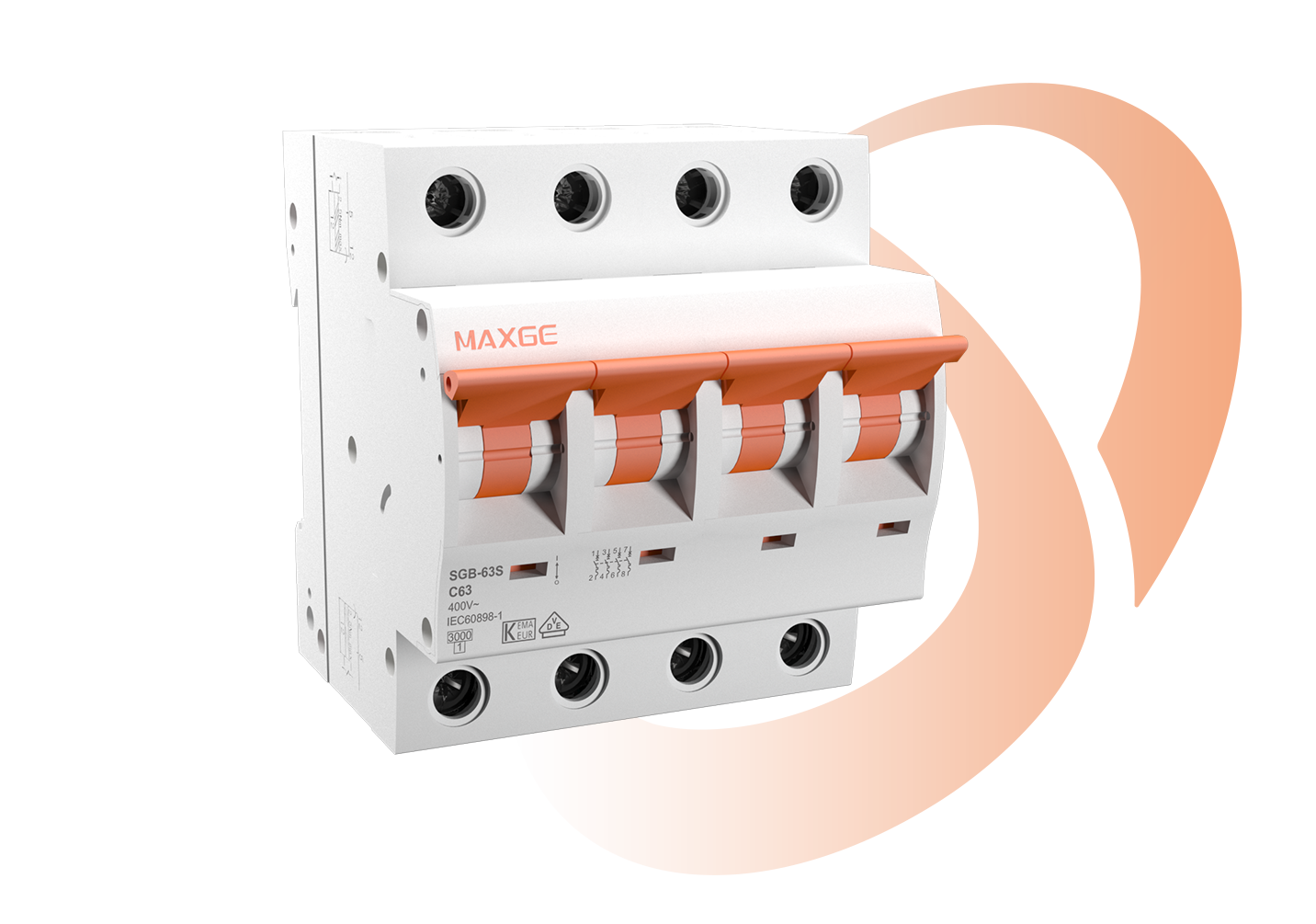

SGB-63S Series Miniature Circuit Breaker

SGB-63S Series Miniature Circuit Breaker

The miniature circuit breaker is mainly suitable for terminal power distribution circuit of commercial office buildings, residential buildings and general industrial purposes with AC 50Hz, rated voltage up to 400V, and rated current up to 63A, providing overload and short-circuit protection for the circuit. The circuit breaker adopts modular design, and has the characteristics of exquisite and beautiful appearance, reliable performance and high breaking capacity.
Inquiry

Brief Specification

Breaking capacity3kA

Trip curveBCD curve

Rated current In1-63A

Number of poles1P,1P+N,2P,3P,3P+N and 4P

Features & Benefits...

The self-developed new lever mechanism is adopted to enhance the arc extinction ability, extend the product lifetime, and make the operation more convenient.

The visualization window shows the contact position in red and green.

Both PIN type and Fork type bus-bar are available.

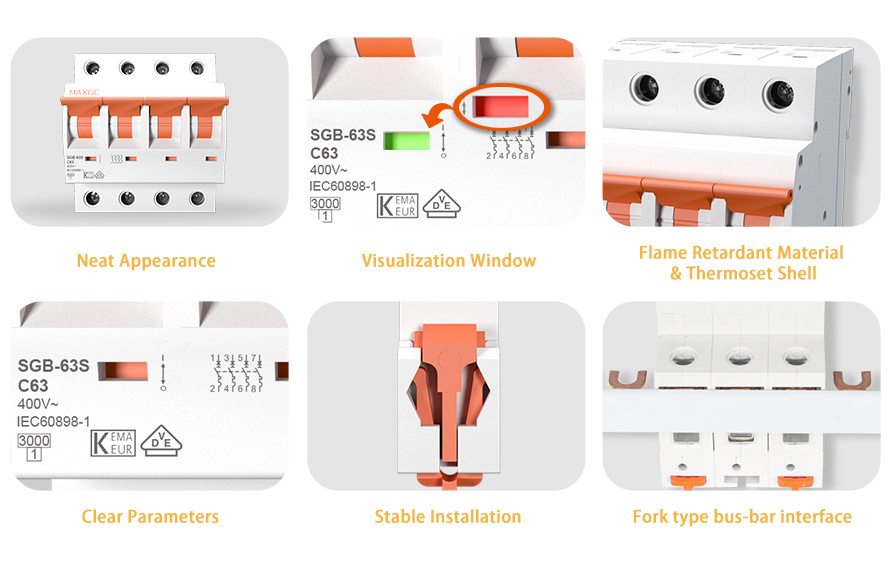

Details...

  • Neat Appearance
  • Visualization Window
  • Flame Retardant Material & Thermoset Shell
  • Clear Parameters
  • Stable Installation
  • Fork type bus-bar interface
